Camshaft Bearing

Camshaft Bearing

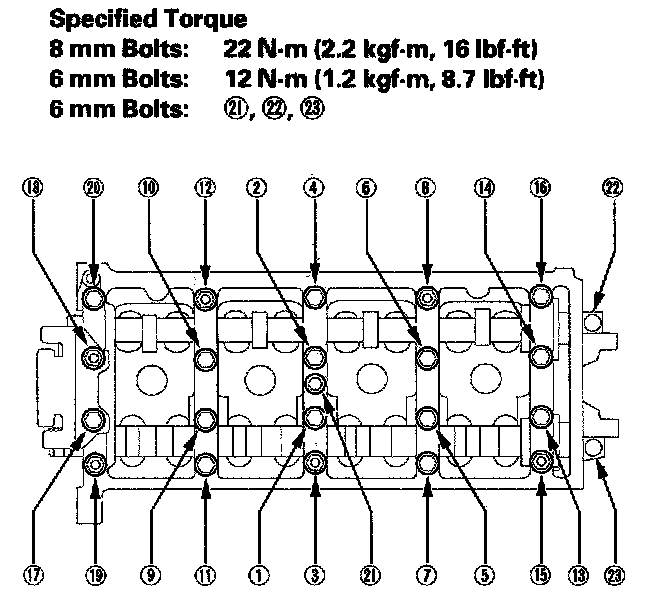

Put the rocker shaft holders, camshaft and camshaft holders on the cylinder head, then tighten the bolts to the specified torque.
