System Specifications
Timing chain tensioner6 x 1.0 mm 12 Nm (1.2 kgf-m, 8.7 ft. lbs.)
Crankshaft pulley

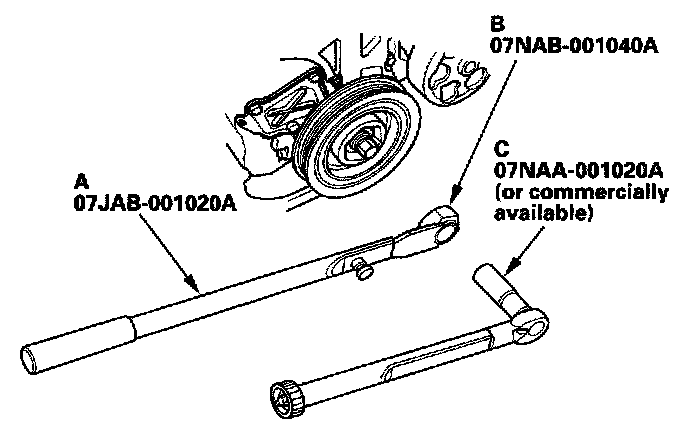

Install the crankshaft pulley, and hold the pulley with holder handle (A) and holder attachment (B).
Tighten the bolt to 50 Nm (5.0 kgf-m, 36 ft. lbs.) with a torque wrench and 19 mm socket (C). Do not use an impact wrench.
Tighten the pulley bolt an additional 90°.
Chain case cover
6 x 1.0 mm 12 Nm (1.2 kgf-m, 8.7 ft. lbs.)
