Water Pump
Water Pump
Water Pump

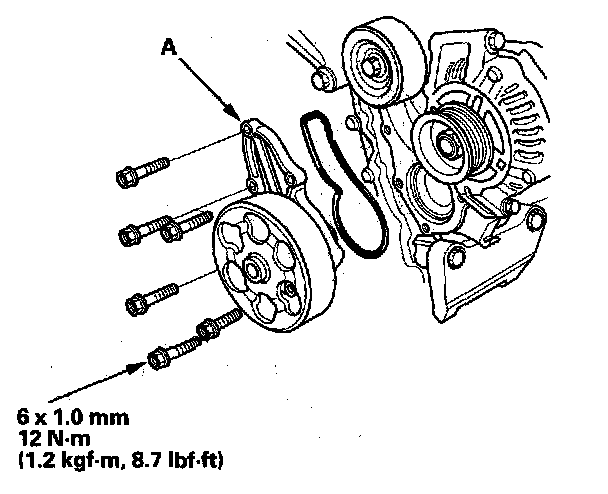

Install the six bolts securing the water pump, then install the water pump (A).
Install the water pump with new O-ring.
