Replacement
Alternator Replacement1. Make sure you have the anti-theft code for the radio, then write down the customer's radio station presets.
2. Disconnect the negative cable from the battery first, then disconnect the positive cable.

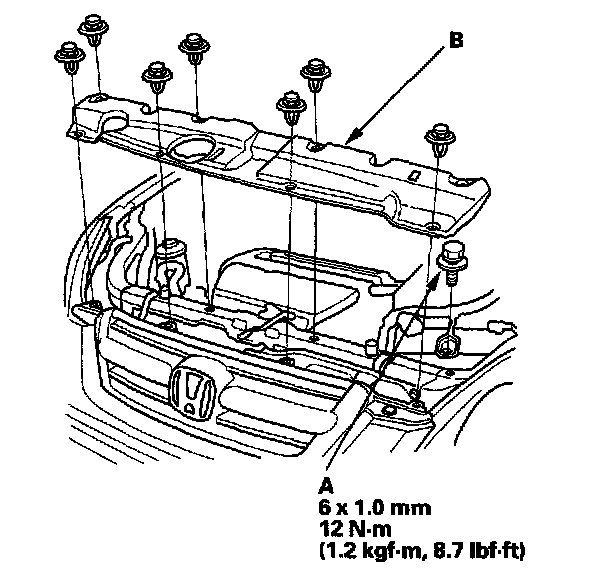

3. Remove the bolt (A) securing the battery clamp, then remove the bulkhead cover (B).

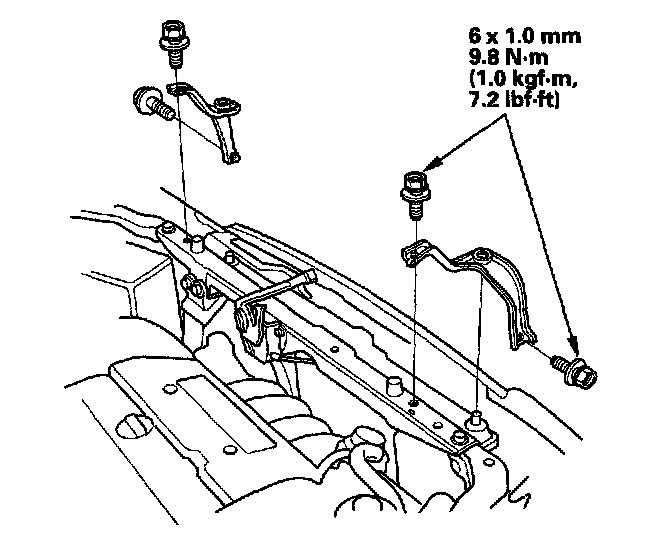

4. Remove the upper brackets and cushions.
5. Remove the drive belt.

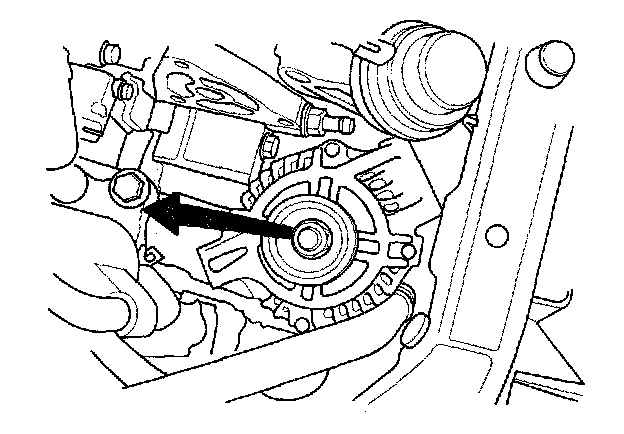

6. Remove the auto-tensioner.

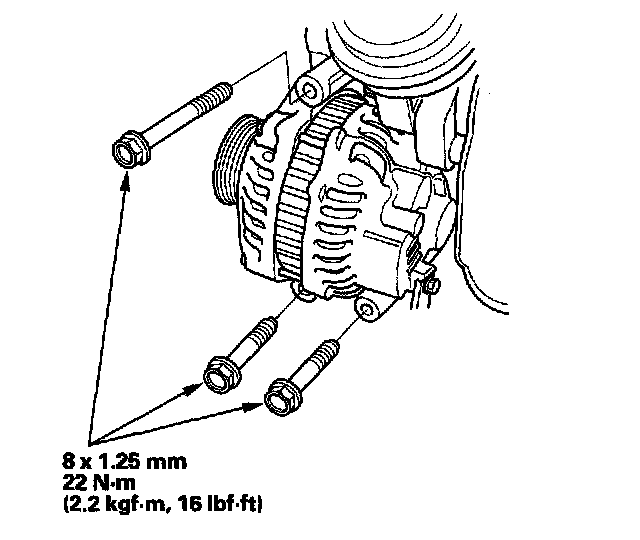

7. Remove the three bolts securing the alternator.

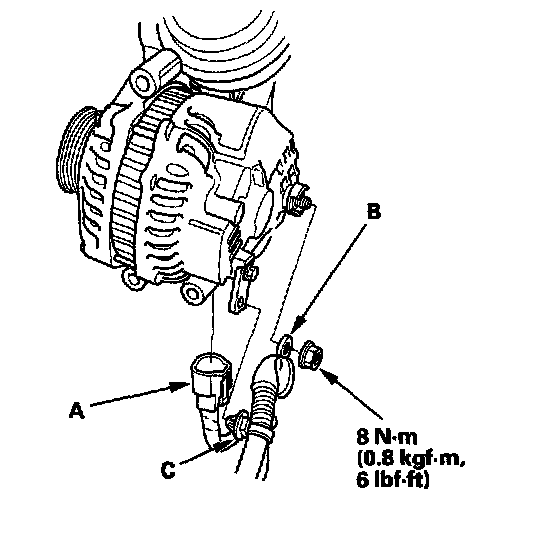

8. Disconnect the alternator connector (A) and BLK wire (B), and remove the harness clamp (C) from the alternator.
9. Remove the alternator.
10. Install the alternator and drive belt in the reverse order of removal.
11. Install the upper brackets and cushions, making sure they are set securely.
12. Connect the positive cable to the battery first, then connect the negative cable.
13. Enter the anti-theft code for the radio, then enter the customer's radio station presets.
14. Set the clock.
15. Reset the power window control unit.
