Recall - OPDS Seat Back Sensor Replacement: Overview
04-062November 11, 2004
Applies To:
2005 CR-V 2WD - From VIN SHSRD6...5U300001 thru SHSRD6...5U301355
2005 CR-V 4WD - From VIN SHSRD7...5U300001 thru SHSRD7...5U306542
Safety Recall: OPDS Seat-Back Sensor
(Supersedes preliminary service bulletin 04-062, dated November 2, 2004)
Updated information is shown with asterisks and black bars.
BACKGROUND
On some 2005 CR-Vs produced in England,* the OPDS side sensor is not installed in the correct position and may fail to shut off the passenger's side airbag if the occupant is out-of-position. In a side collision, such an out-of-position occupant may be injured by a deploying side airbag.
* 2005 CR-Vs produced in Japan (VIN begins with 'HL') are not affected by this campaign.
CUSTOMER NOTIFICATION
All owners of affected vehicles will be mailed a *notification of this recall campaign. An example of the customer notification is shown in this service bulletin.*
Not all vehicles within the VIN ranges are affected by this recall. Before beginning work on a vehicle, verify its eligibility by checking at least one of these items:
^ *The customer has a notification letter.*
^ The vehicle is shown on your campaign responsibility report.
^ The vehicle is shown as eligible on an iN VIN status inquiry.
*In addition to these verification items, check for a punch mark above the first character of the engine compartment VIN. A punch mark in that location means this safety recall campaign has already been completed.*
Many vehicles affected by this recall are in your new vehicle inventory and some are still in transit to you. According to federal law, these vehicles cannot be sold or leased until they are repaired. To see if a vehicle is affected by this recall, do a VIN status inquiry before selling it.
CORRECTIVE ACTION
Replace the front passenger's seat-back pad. (The OPDS sensors are in the pad.)

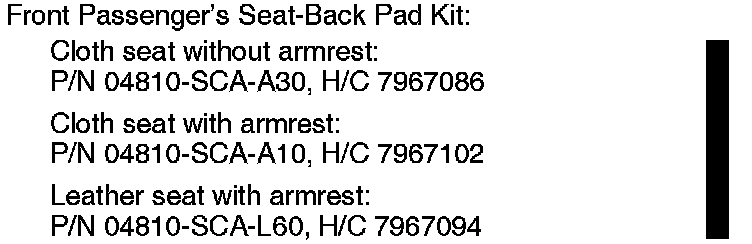

PARTS INFORMATION

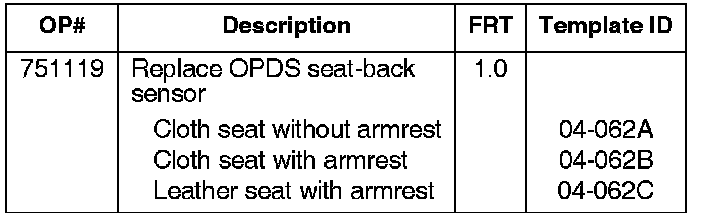

WARRANTY CLAIM INFORMATION
Failed Part: P/N 81122-SCA-A12
H/C 7824790
Defect Code: 5CJ00
Symptom Code: P4900
Skill Level: Repair Technician
REPAIR PROCEDURE
1. Turn the ignition switch to ON (II). The SRS indicator should come on for a few seconds and then go off.
^ If the SRS indicator goes off, go to step 2.
^ If the SRS indicator does not go off, troubleshoot the SRS before continuing.
2. Remove the seat from the vehicle (see page 20-99 of the 2005 CR-V Service Manual).
3. Remove the seat-back cover (see page 20-106 of the service manual).
4. Replace the seat-back pad (see pages 20-104, 20-106, and 20-107 of the service manual).
5. Reinstall the seat-back cover (see page 20-107 of the service manual).
6. Reinstall the seat (see page 20-101 of the service manual).
7. Initialize the OPDS unit with the HDS (see page 23-28 of the service manual).
8. Check the operation of the front passenger's weight sensor unit (see page 23-31 of the service manual).

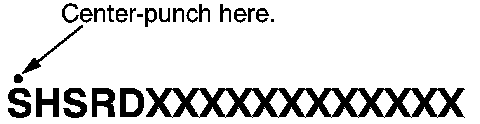

9. Center-punch a completion mark above the first character of the engine compartment VIN.
