Control Module: Service and Repair
How to Remove and Install the PCM1. Connect the HDS to the DLC.
2. Turn the ignition switch OFF.
3. Jump the SCS line with the HDS.
4. Disconnect PCM connectors.
5. Remove the glove box stops, and open the glove box.

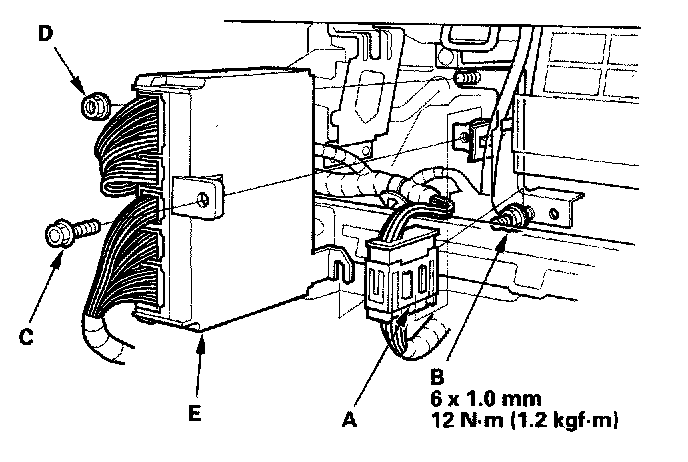

6. Remove the harness connector clamp (A) from its bracket.
7. Loosen the mounting nut (B) on the lower right of the PCM, and remove the mounting bolt (C) and nut (D) on the left of the PCM.
8. Lift the PCM up to clear the mounting nut on the lower right of the PCM, and pull out the PCM (E).
9. Install the PCM in the reverse order of the removal.
