Home >> Honda >> 2005 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Heated Glass Element Relay >> Locations

Heated Glass Element Relay: Locations

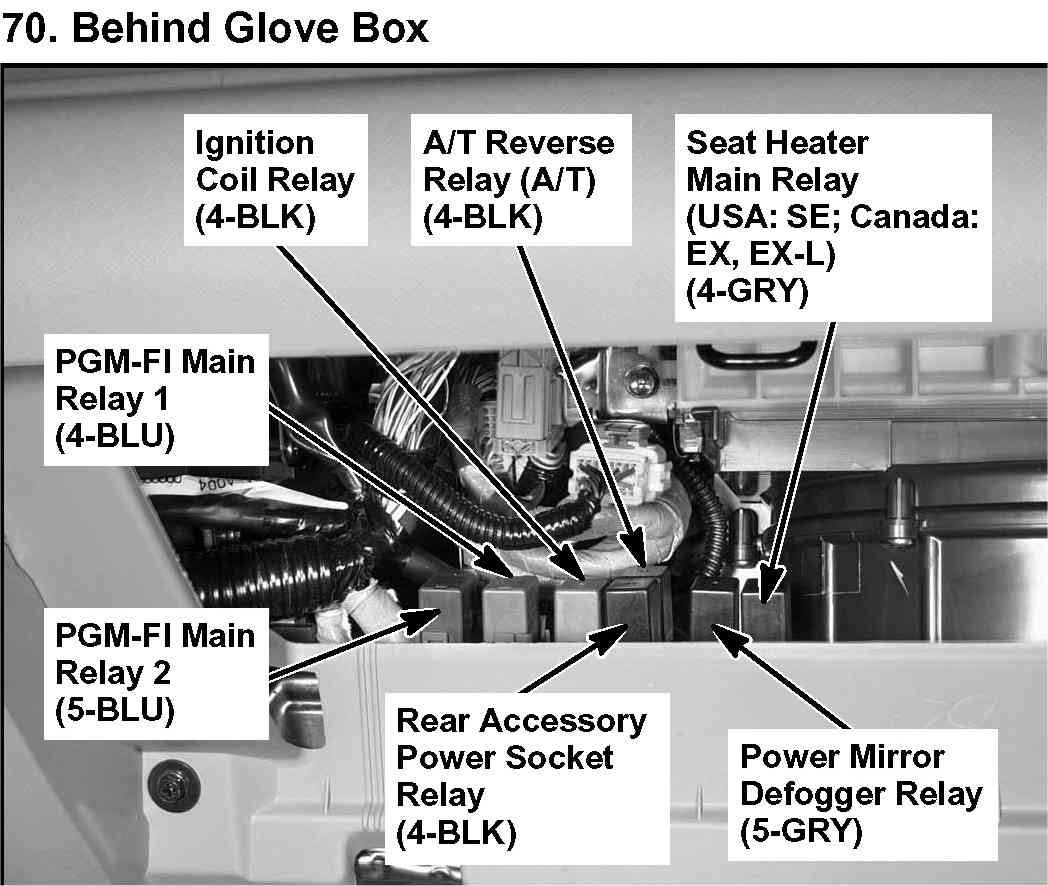

70. Behind Glove Box:



Relay And Control Unit Locations - Engine Compartment:



Relay And Control Unit Locations - Dashboard:



Rear Window Defogger - Component Location Index:
