Operation CHARM: Car repair manuals for everyone.
Home >> Honda >> 2005 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Front Door Window Motor >> Locations

Front Door Window Motor: Locations

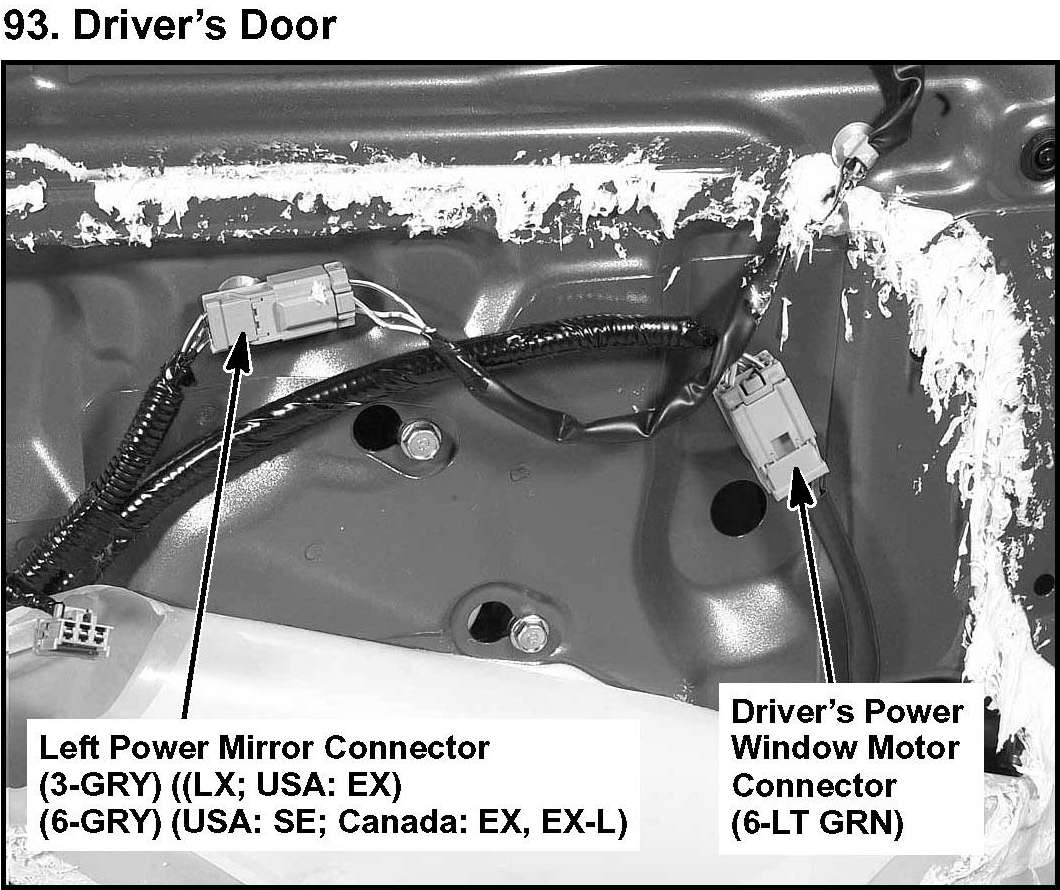

93. Driver's Door:

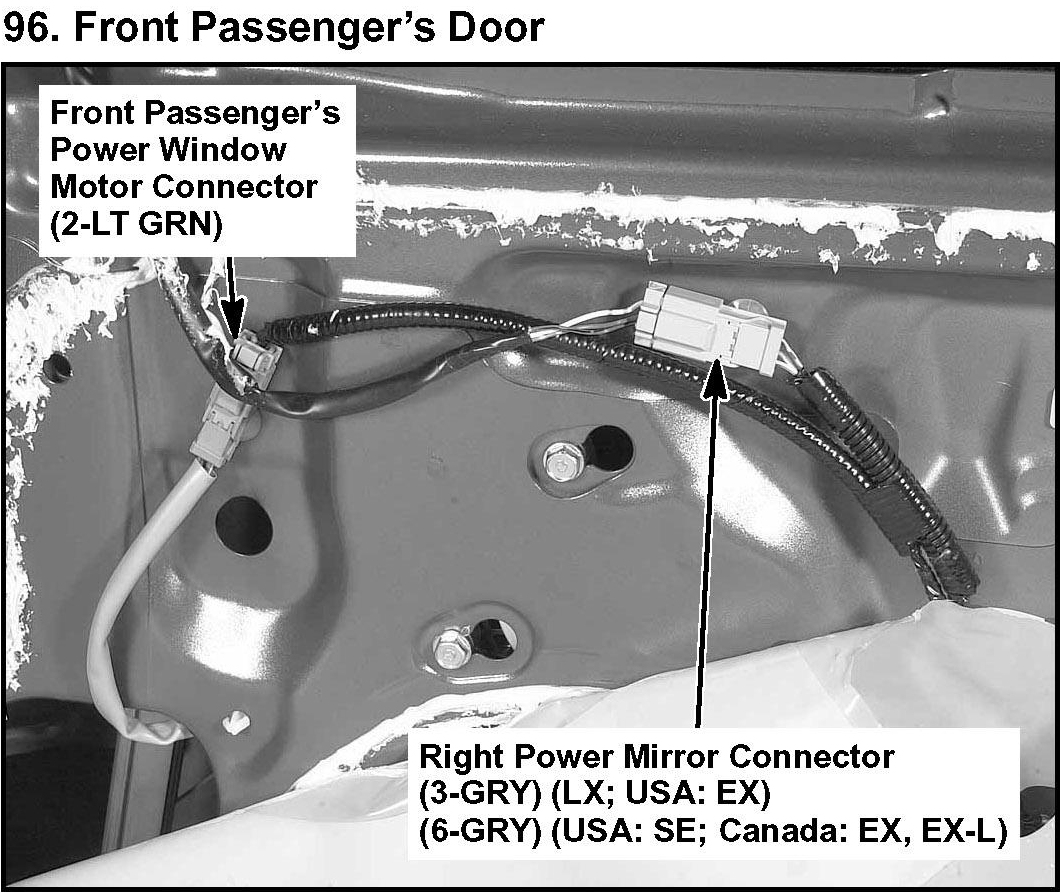

96. Front Passenger's Door:
