Transfer Assembly Disassembly

Transfer Assembly Disassembly





Exploded View

Special Tools Required
^ Holder handle 07JAB-001020A
^ Companion flange holder 07RAB-TB4010B

NOTE: Refer to the Exploded View as needed during the following procedure.

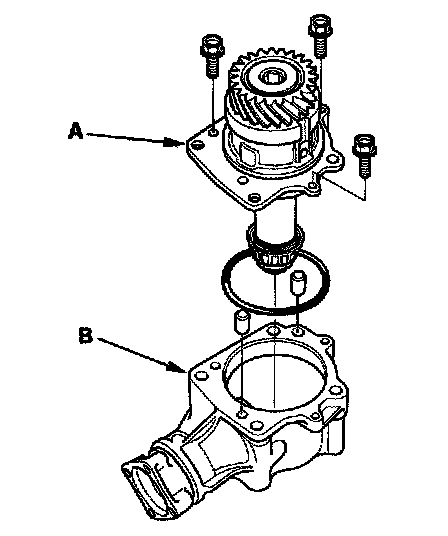

1. Remove the transfer holder assembly (A) from the transfer housing (B).

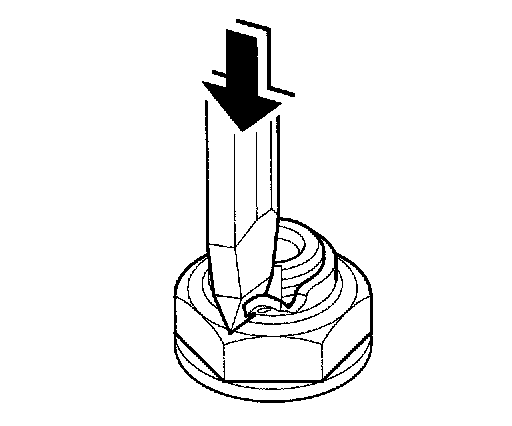

2. Cut the lock tabs of the locknut using a chisel. Keep all of the chiseled particles out of the transfer driven near.

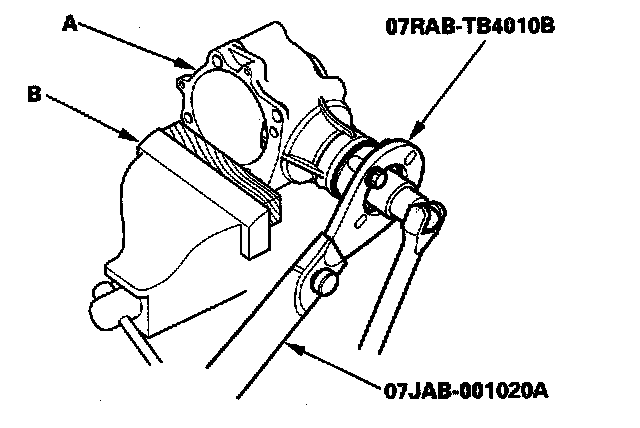

3. Secure the transfer housing (A) in a bench vise (B) with soft jaws.

NOTE: To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.

4. Install the special tool on the companion flange, then loosen the transfer driven gear shaft locknut.

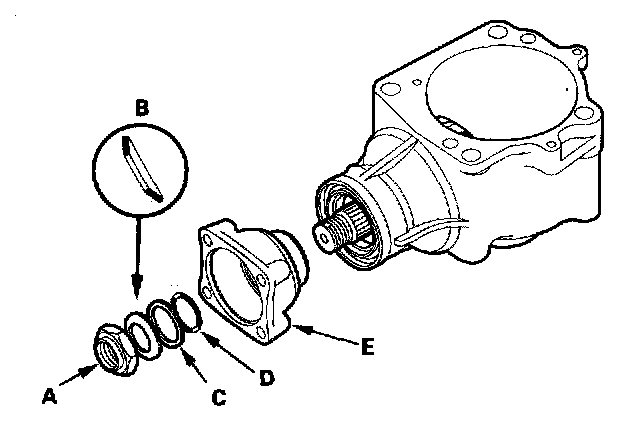

5. Remove the transfer driven gear locknut (A), the conical spring washer (B), the back-up ring (C), the O-ring (D), and the companion flange (E).

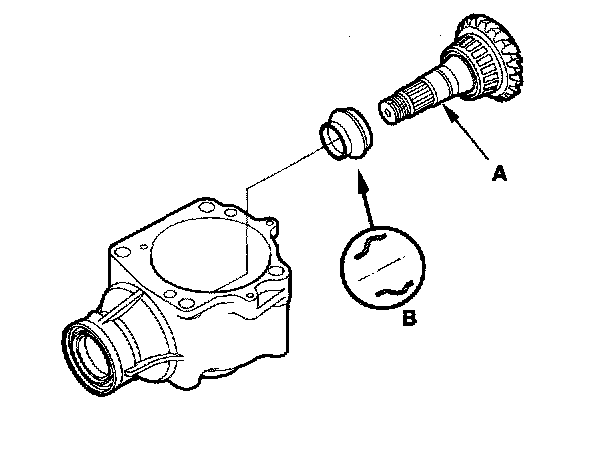

6. Remove the transfer driven gear (A), then remove the transfer spacer (B) from the transfer driven gear.

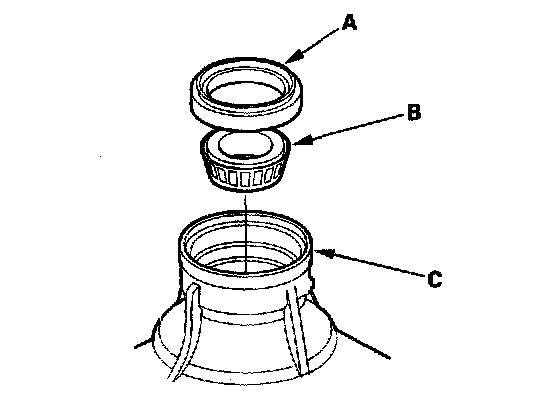

7. Remove the oil seal (A) and the tapered roller bearing (B) from the transfer housing (C).
