Home >> Honda >> 2005 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 151-175 >> 156

Views 151-175: 156

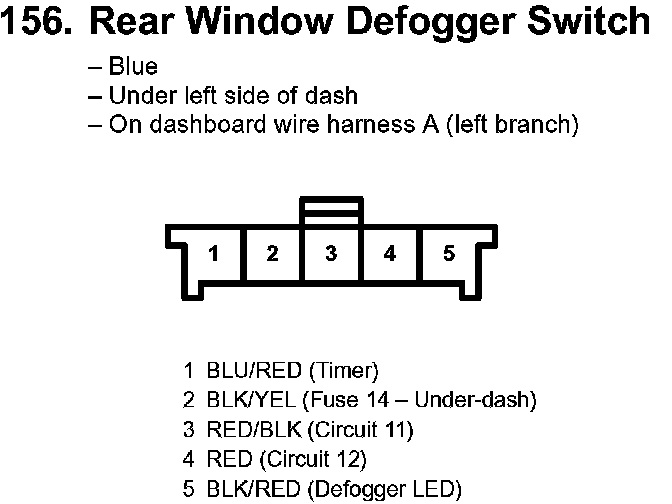

156. Rear Window Defogger Switch:
