System Diagram

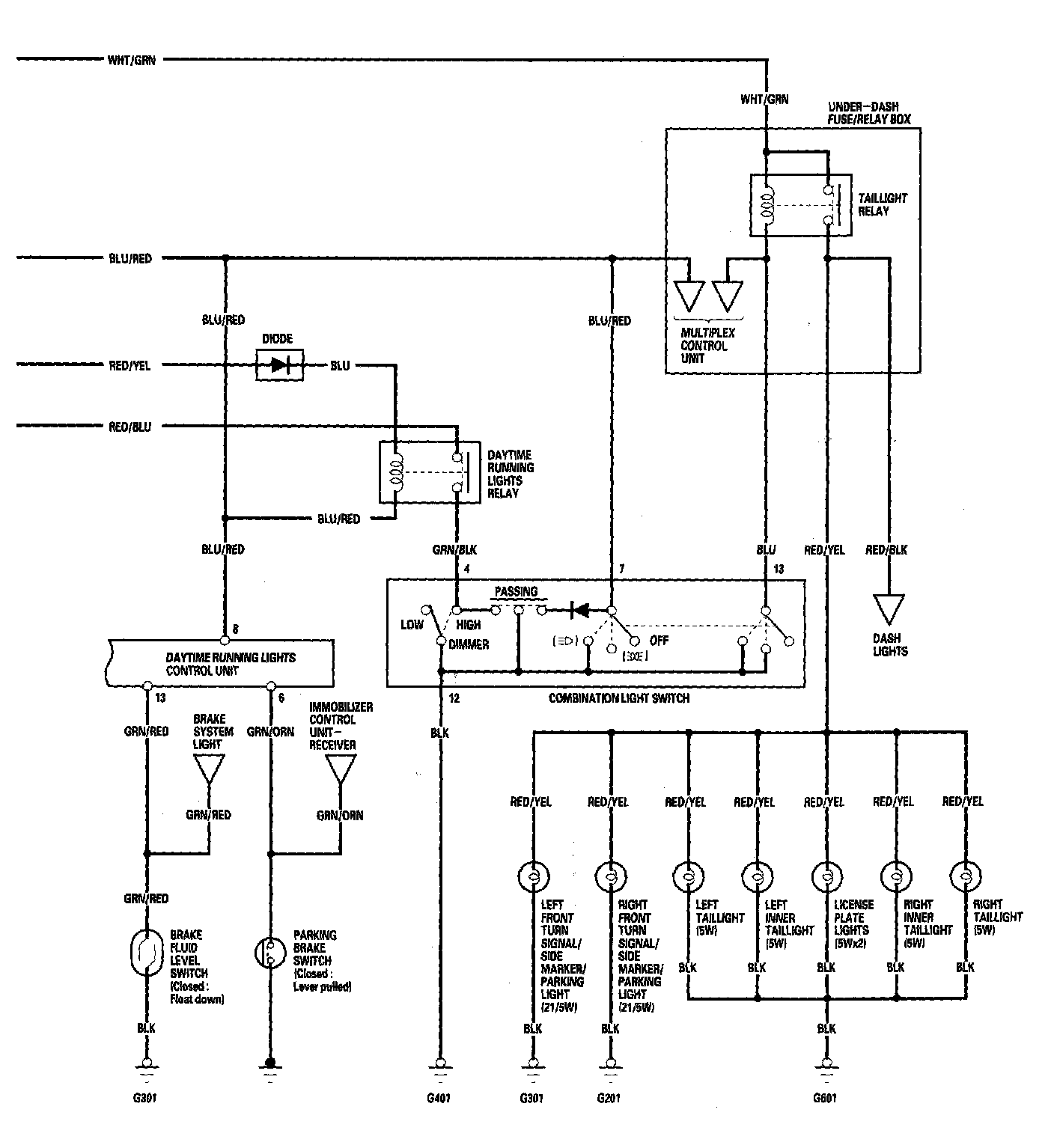

Exterior Lights - Circuit Diagram (canada) Part 1:



Exterior Lights - Circuit Diagram (canada) Part 2:



Exterior Lights - Circuit Diagram (USA):
