Home >> Honda >> 2005 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Splice and Junction Connector Details >> Circuit 203 Rear Door Switch

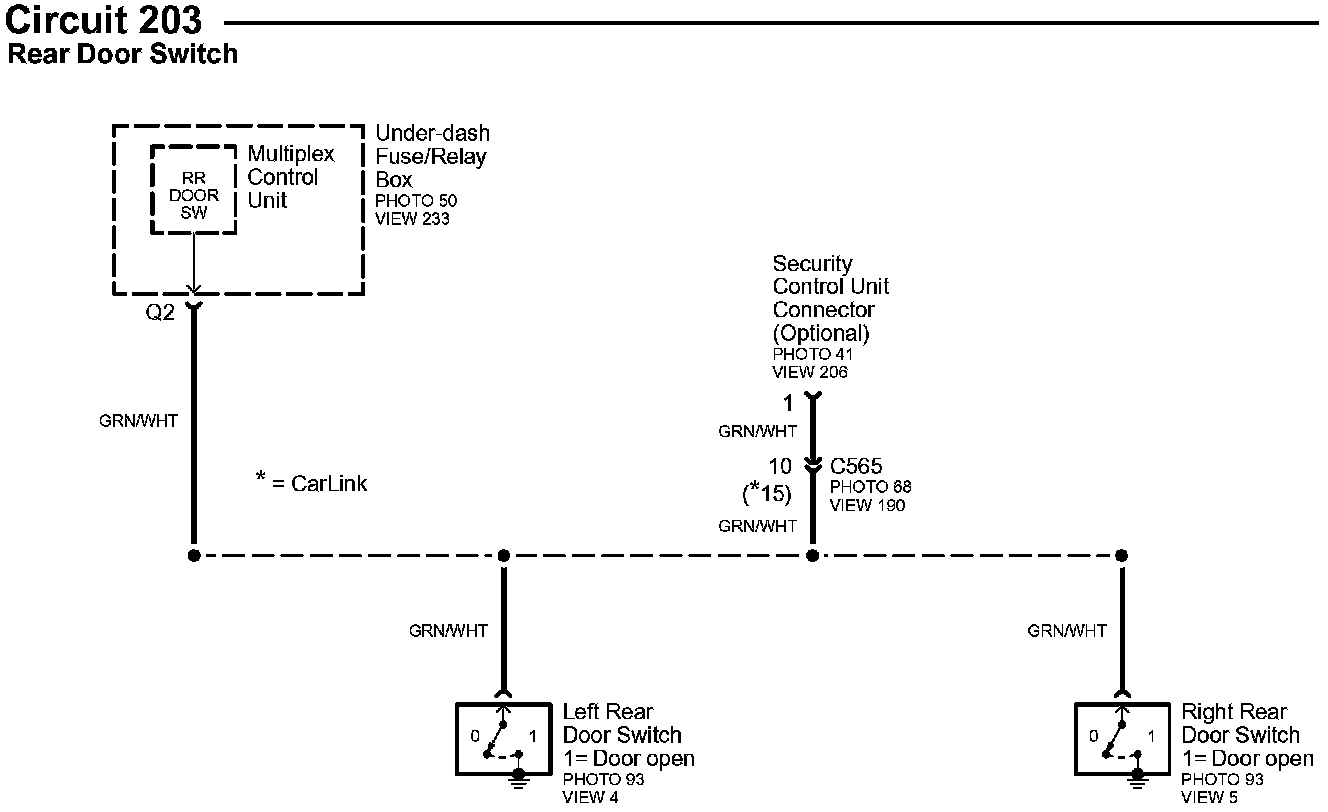

Circuit 203 Rear Door Switch

Circuit 203 Rear Door Switch:
