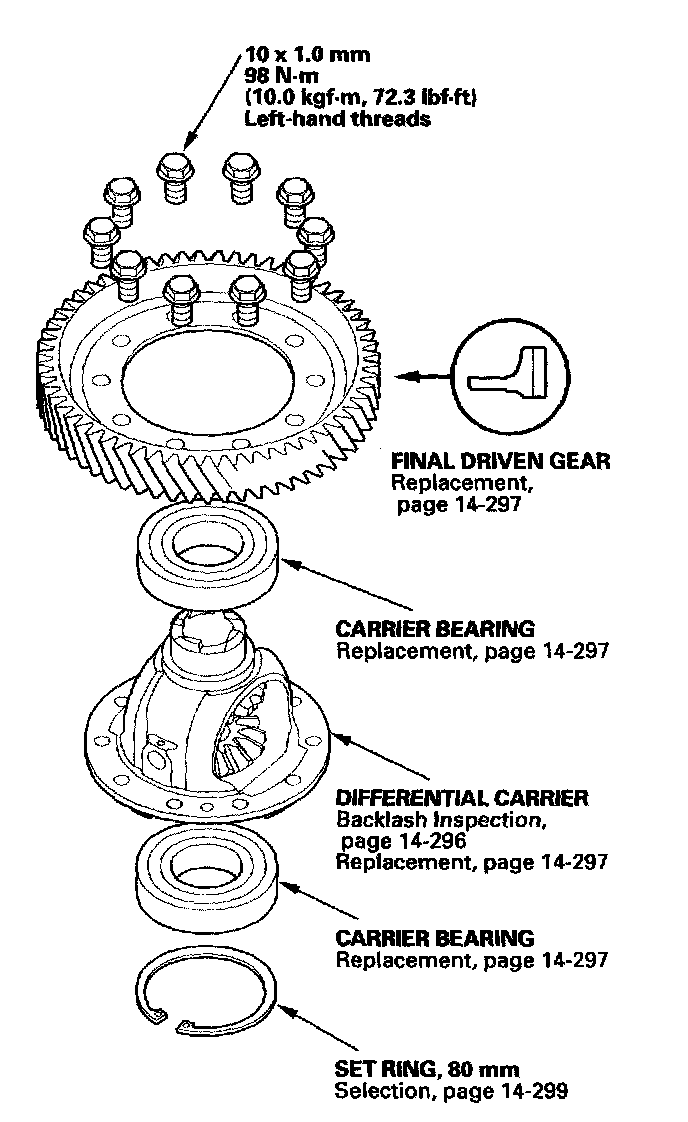

Exploded Views
>>
Continuously Variable Transmission/Transaxle, CVT
Continuously Variable Transmission/Transaxle, CVT
Component Location Index:
