Transmission Range Switch Test
Transmission Range Switch Test1. Remove the air cleaner housing and intake air duct.

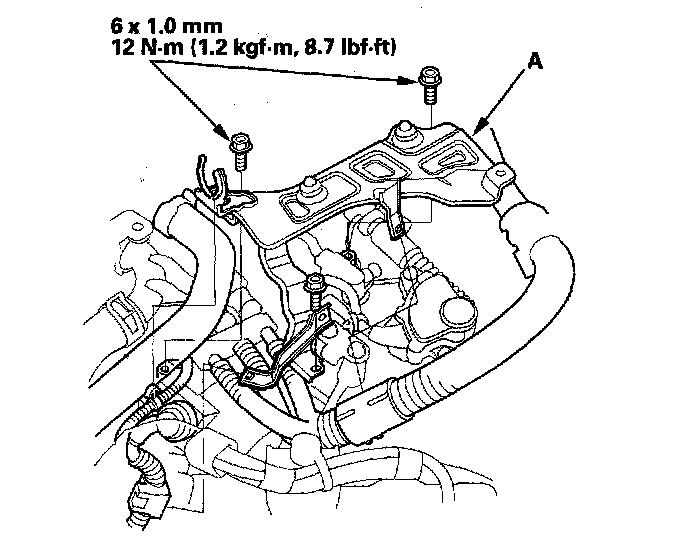

2. Remove the air cleaner housing bracket (A).

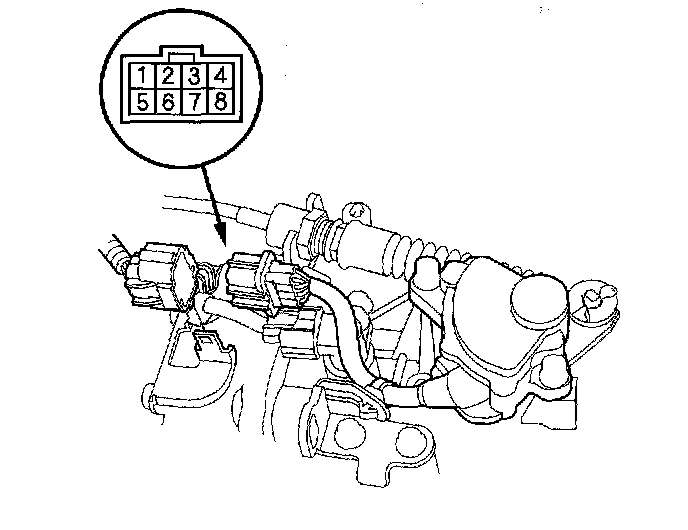

3. Disconnect transmission range switch connector.

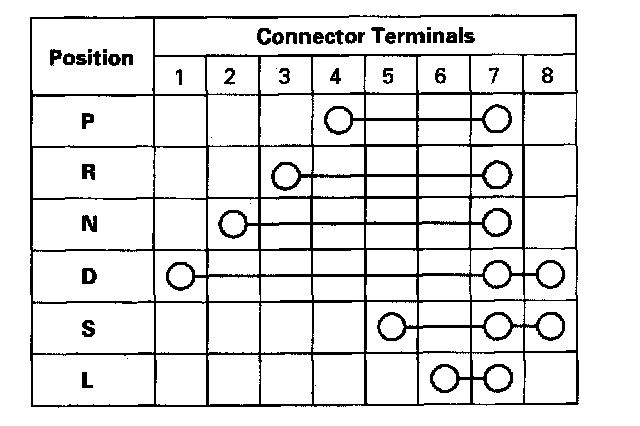

4. Check for continuity between terminals. There should be continuity between the terminals in the following table for each switch position.
5. If there is no continuity between any terminals, check the transmission range switch installation. If the installation is OK, replace the switch. If the switch continuity check was OK, replace the faulty wire harness.
