Home >> Honda >> 2005 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Steering and Suspension >> Relays and Modules - Steering >> Steering Control Module >> Locations

Steering Control Module: Locations

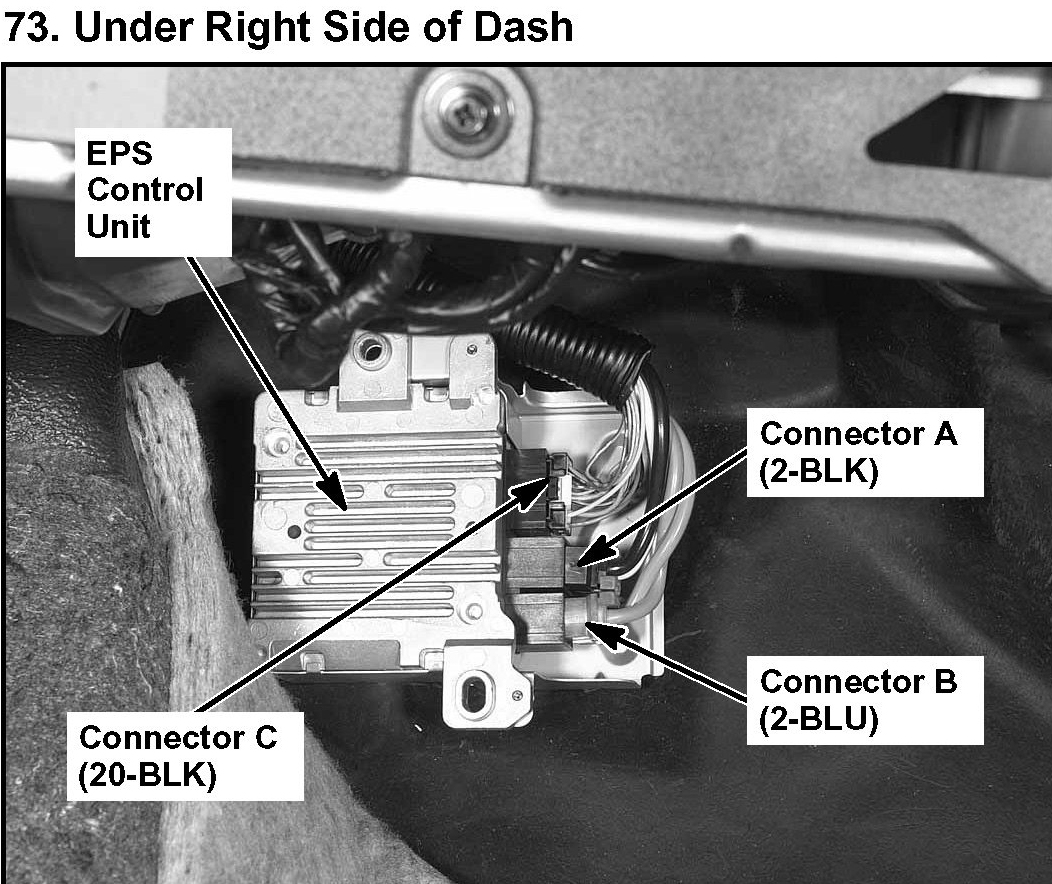

73. Under Right Side Of Dash:

Relay And Control Unit Locations - Dashboard:
