Body - Power Windows Inoperative/Intermittent Operation
06-010March 8, 2006
Applies To:
2001-05 Civic - All LX and EX 4-door
2003-05 Civic Hybrid - ALL
2001-05 Civic GX - ALL
Power Window Does Not Work or Works Intermittently
SYMPTOM
One or more of the power windows does not work or works intermittently from the power window master switch (in the driver's door).
PROBABLE CAUSE
The power window master switch is faulty.
CORRECTIVE ACTION
Replace the power window master switch.
PARTS INFORMATION
WARRANTY CLAIM INFORMATION
In warranty:
The normal warranty applies.
Operation Number: 744100
Flat Rate Time: 0.2 hr
Failed Part: P/N 35750-S5A-A01ZA
H/C 6453419
Defect Code: 03217
Symptom Code: 01201
Template ID: 06-010A (Black Switch)
06-010B (Medium Taupe Switch)
Skill Level: Repair Technician
Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.
REPAIR PROCEDURE
1. Remove the driver's side grip cover:
^ Using a trim tool, pry out the front edge of the cover to release the front clip.
^ Pry out along the bottom to release the lower hooks.
^ Pry out along the top to release the upper hooks.
^ Pull the cover forward to release the rear clip.

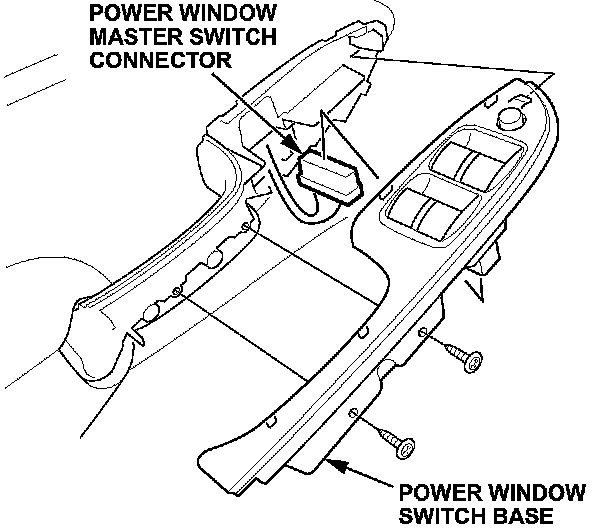

2. Disconnect the power window master switch connector.
3. Remove the two screws that attach the power window switch base to the armrest, then remove the switch base.
4. Remove the three screws, then replace the power window master switch assembly.
5. Reinstall the parts in the reverse order of removal.
6. Test the operation of all windows with the power window master switch.If any of the windows do not work correctly, continue with normal troubleshooting, and do the master switch input test:
^ Refer to page 22-168 of the 2001-05 Civic Service Manual, or
^ Online, enter keyword MASTER TEST, and select Power Window Master Switch Input Test (4-door) from the list.
