Middle Floor Panel Replacement

Middle Floor Panel Replacement

NOTE: IMA wires are located in this area. Make sure you read the Service Precautions before performing repairs or service.

NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the seats and interior trim.

1. Remove the middle bulkhead carpet.

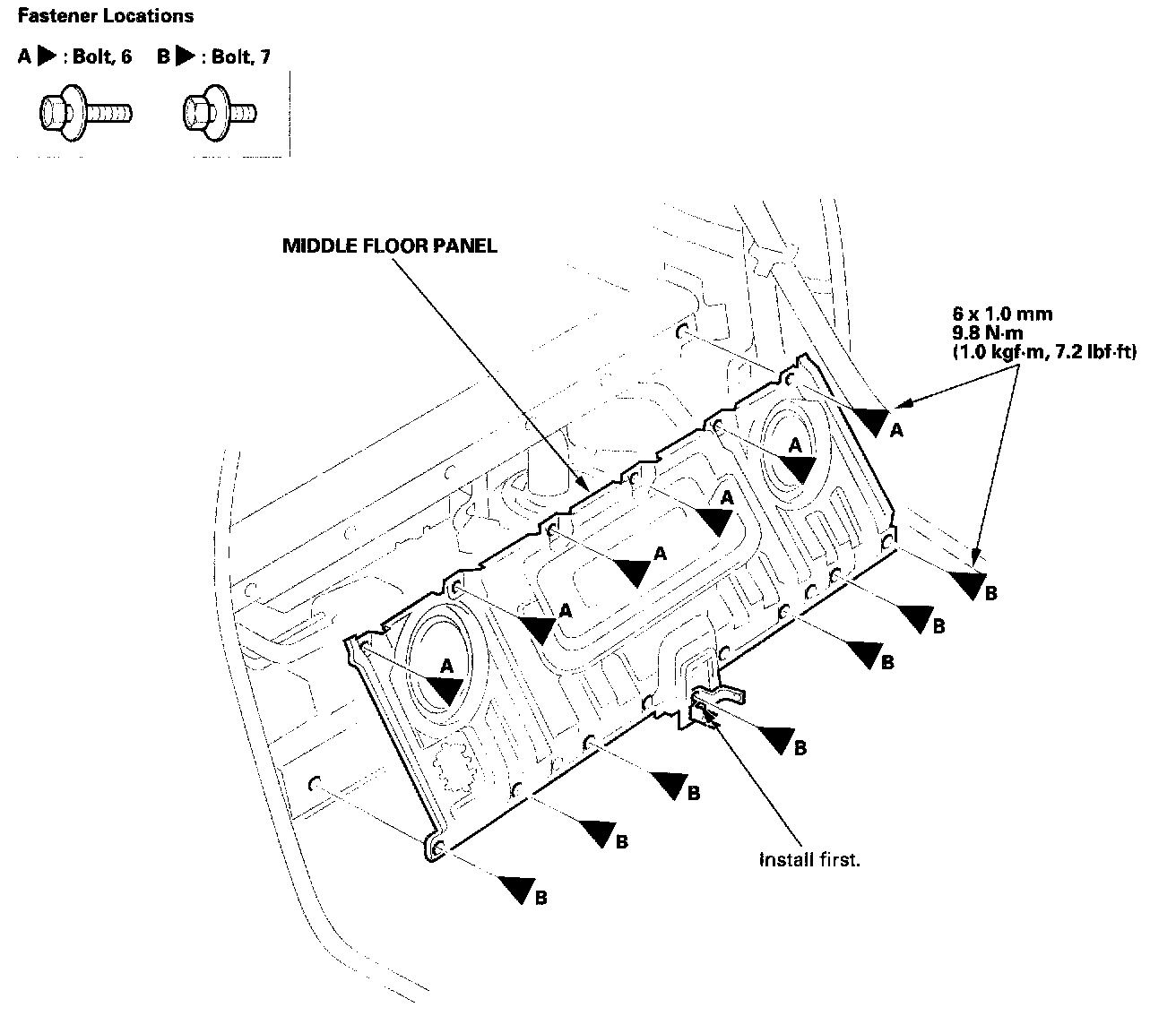

2. Remove the middle floor panel as shown.




3. Install the middle floor panel in the reverse order of removal, and to align the panel, first install the 8 bolt in the middle of the panel.
