Skid Plate: Service and Repair

Front Floor Under Cover Replacement

NOTE:
- IMA wires are located in this area. Make sure you read the Service Precautions before performing repair or service.
- Take care not to scratch the body.

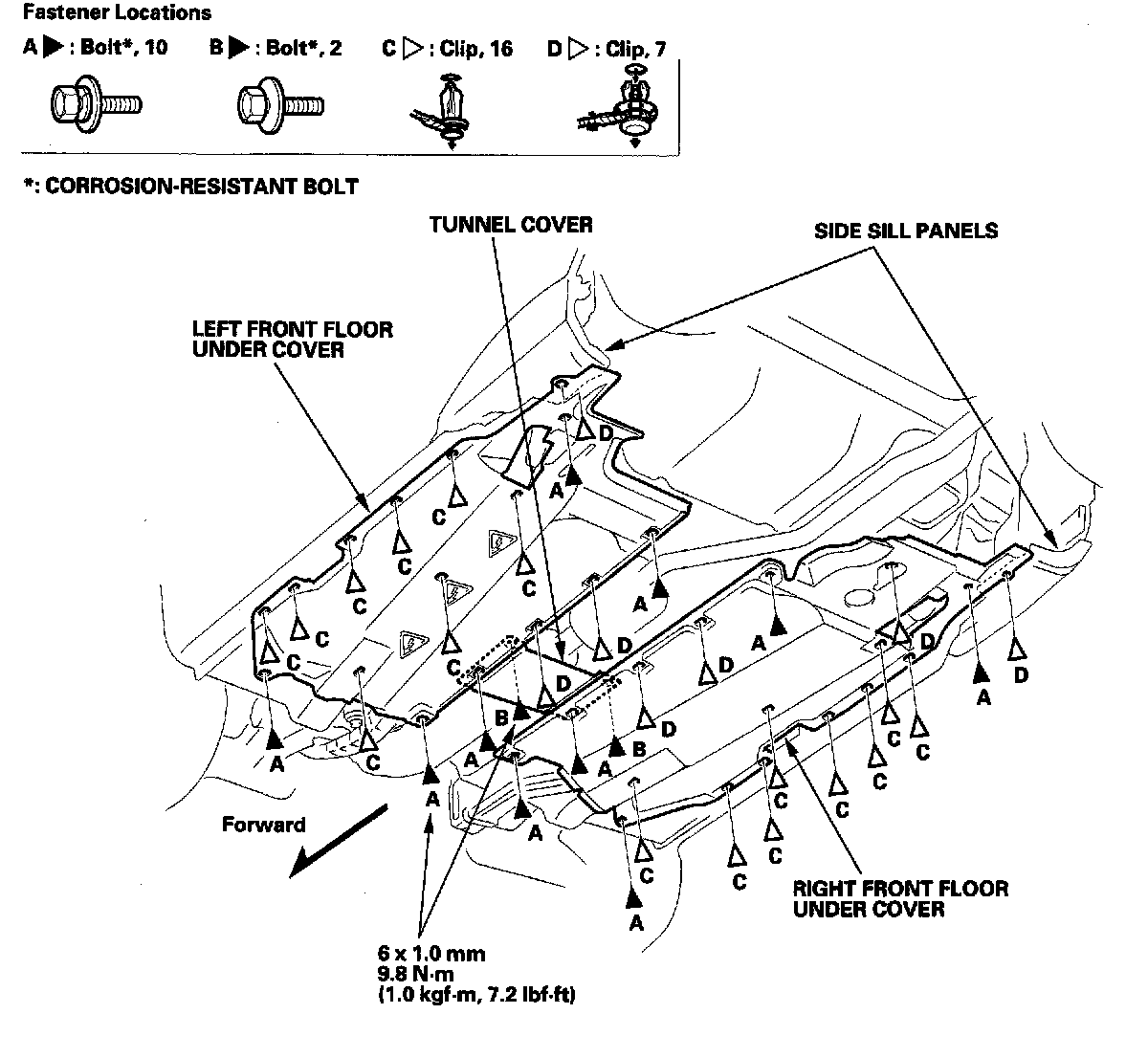

1. Remove the front floor under cover as shown.

2. Install the front floor under cover in the reverse order of removal, and check for damaged or stress-whitened clips, and replace them with new ones.
