Ambient Temperature Sensor / Switch HVAC: Service and Repair

Outside Air Temperature Sensor Replacement

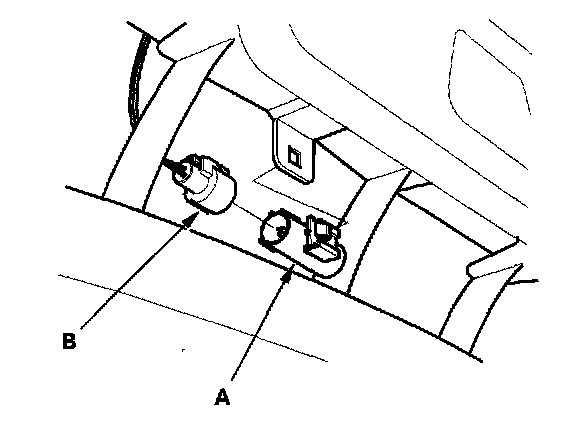

1. Remove the outside air temperature sensor (A), then disconnect the 2P connector (B).
2. Install the sensor in the reverse order of removal.
