Engine Oil: Service and Repair

Engine Oil Replacement
1. Warm up the engine.

2. Remove the right rear splash shield.

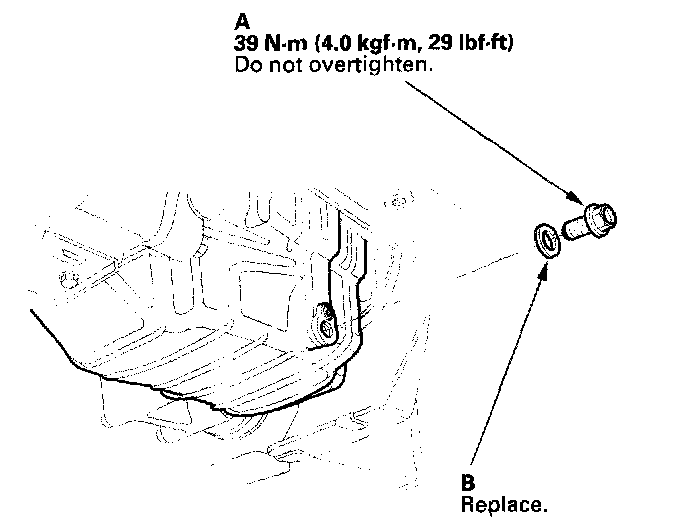

3. Remove the drain bolt (A), and drain the engine oil.
4. Reinstall the drain bolt with a new washer (B).
5. Refill with the recommended oil.
Capacity
At Oil Change: 2.3 L (2.4 US qt)
At Oil Change including Filter: 2.5 L (2.6 US qt)
After Engine Overhaul: 3.0 L (3.2 US qt)
6. Run the engine for more than 3 minutes, then check for oil leakage.
