Electronic Throttle Actuator: Service and Repair

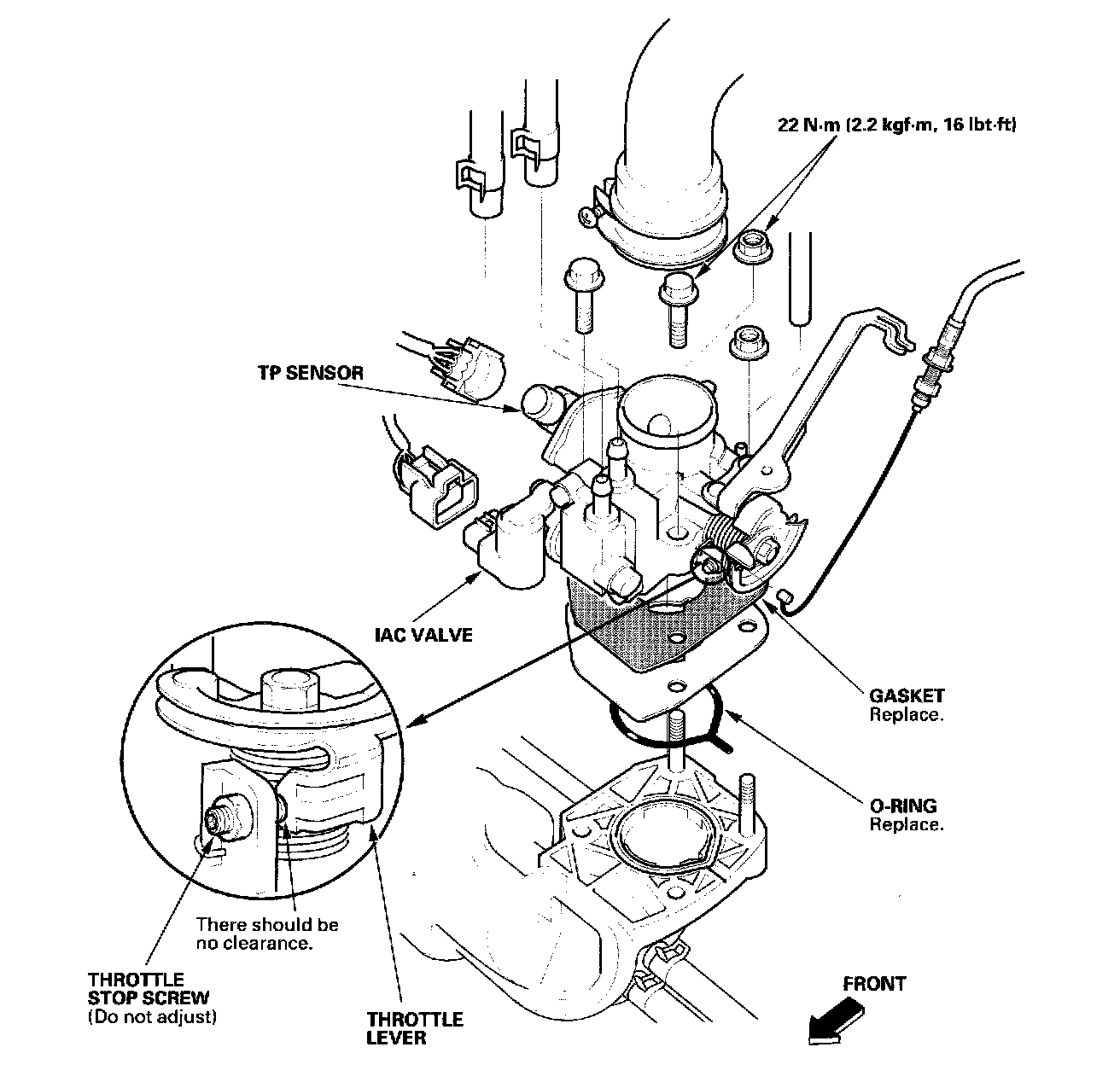

Throttle Body Removal/InstallationNOTE: -
Do not adjust the throttle stop screw
-
After reassembly, adjust the throttle cable
-
The TP sensor is not removable
