Transmission Range Switch Test
Transmission Range Switch Test1. Remove the air cleaner housing.

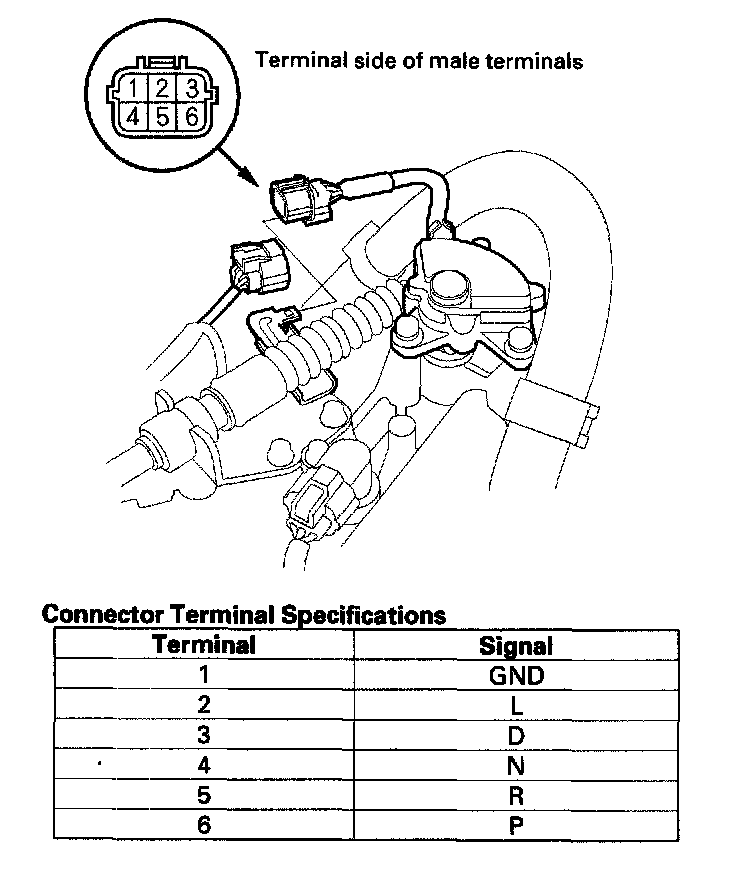

2. Remove the transmission range switch connector from the connector bracket, then disconnect it.
3. Check for continuity between terminals at the connector. There should be continuity between terminals listed for each switch position.
^ In the P position:
Between terminals No. 1 and No. 6
^ In the R position:
Between terminals No. 1 and No. 5
^ In the N position:
Between terminals No. 1 and No. 4
^ In the D position:
Between terminals No. 1 and No. 3
^ In the L position:
Between terminals No. 1 and No. 2
4. If there is no continuity between any terminals, adjust the transmission range switch. If the transmission range switch adjustment is OK, replace the transmission range switch.
