Climate Control Unit Removal and Installation

Climate Control Unit Removal and Installation

1. Remove the instrument panel with the climate control unit.

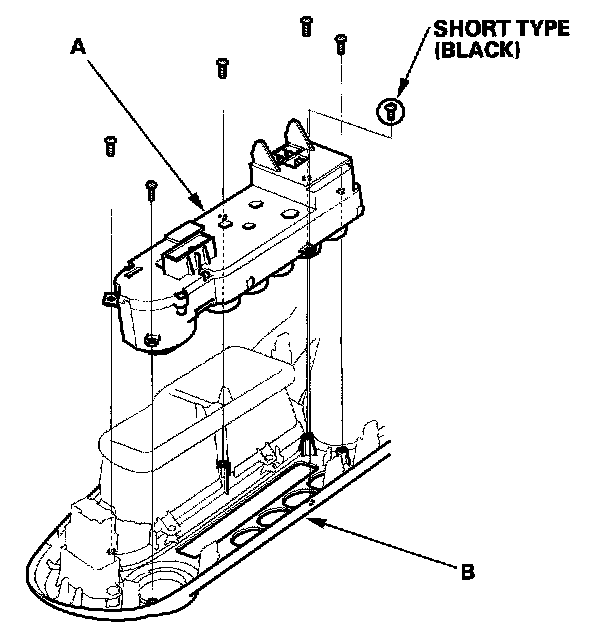

2. Remove the self-tapping screws and the climate control unit (A) from the instrument panel (B).
3. Install the control unit in the reverse order of removal, and note these items:

- Be sure to install the short black self-tapping screw in the position shown. If a longer screw is used, it will damage the instrument panel.
- After installation, operate the control unit controls to see whether it works properly.

4. Run the self-diagnostic function to confirm that there are no problems in the system.
