Torque Specifications

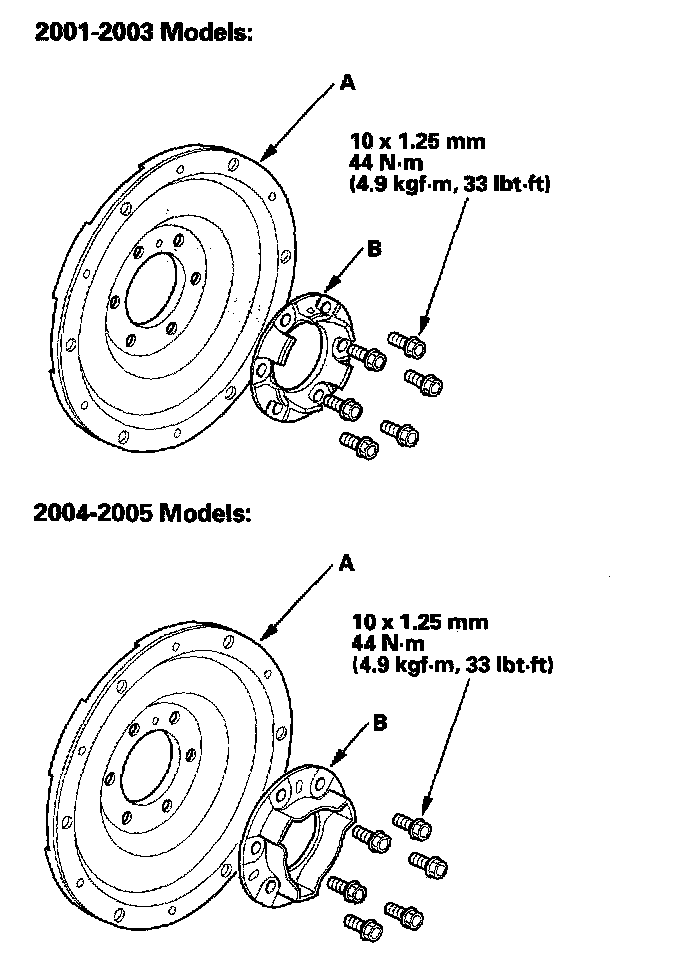

Flex Plate Install the drive plate, and install the washer in the direction shown on the engine crankshaft.
Tighten the six bolts in a crisscross pattern.
Transmission Pan 6 x 1.0 mm
12 Nm (1.2 kgf-m, 8.7 ft. lbs.)
Overhaul Specs Refer to the service procedures provided at CVT Transmission/Transaxle; Service and Repair; Overhaul (Transmission).
Overhaul (Transmission)
