Connecting Rod Bearing
Connecting rod bearing Reinstall the bearing half and cap, and torque the bolt to 9.8 Nm (1.0 kgf-m, 7.2 ft. lbs.) + 90°.
NOTE: Do not rotate the
crankshaft during inspection.

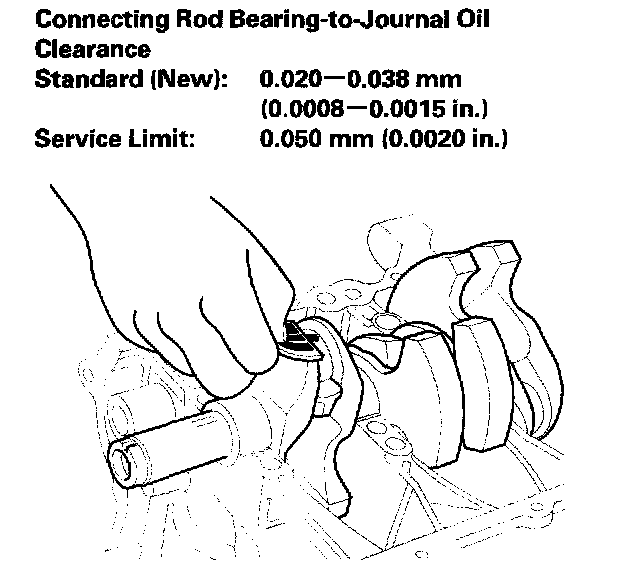

Remove the rod cap and bearing half and measure the widest part of the plastigage.
