Oil Pan, Engine

Oil pan

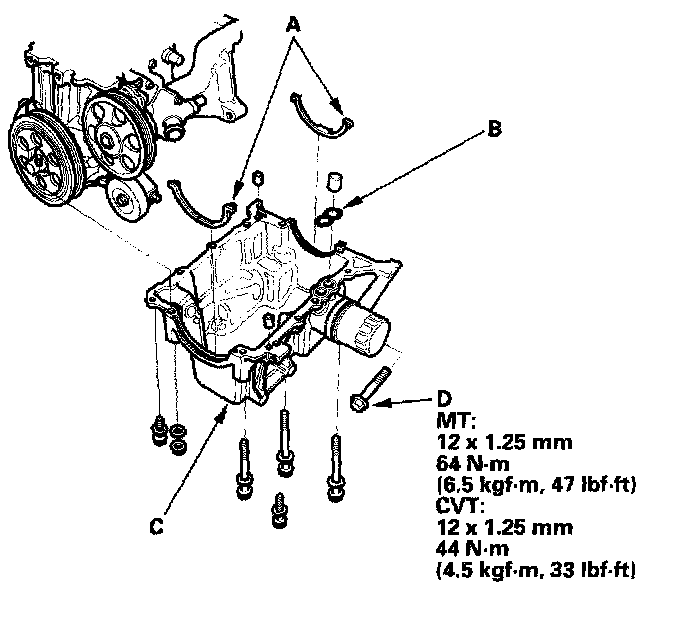

Install the new oil pan gaskets (A) and a new O-ring (B) on the oil pan, then install the oil pan (C). Tighten the transmission housing mounting bolts (D).

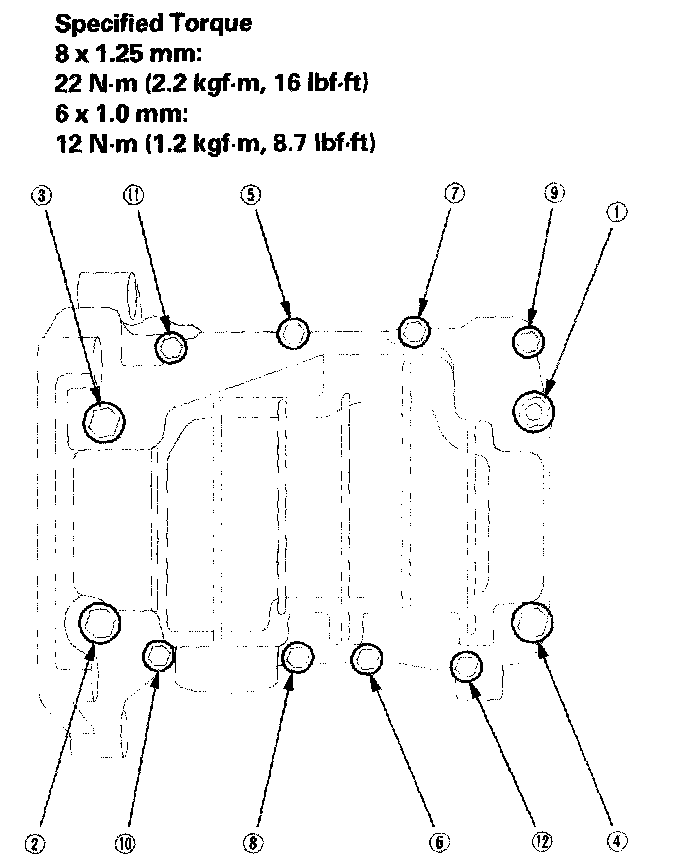

Tighten the bolts and nuts to the specified torque.
