Mode Switch Replacement

Mode Switch Replacement

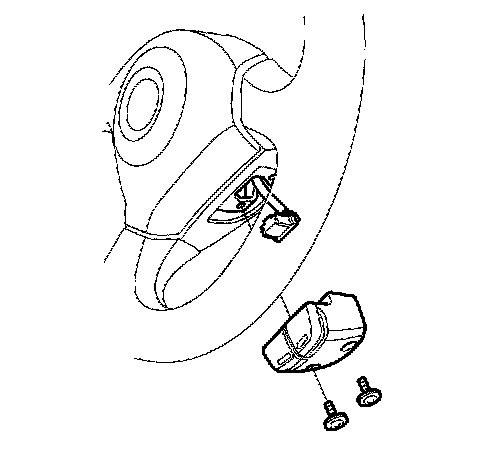

1. Remove the screws securing the mode switch, then remove the switch.
2. Disconnect the connector from the switch.
3. Install the new mode switch.
