68
Views 51-75: 68

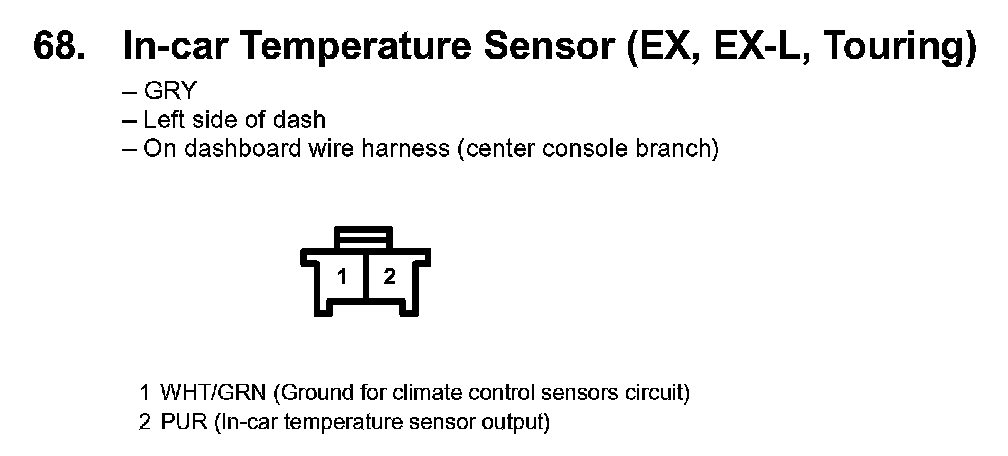

68. In-car Temperature Sensor (EX, EX-L, Touring):
69. In-Car Temperature Sensor, Rear (Touring):
