Rear Bumper Sub-Harness (EX-L Touring Model) (Left Branch)
Rear Bumper Sub-Harness (EX-L Touring Model) (Left Branch)

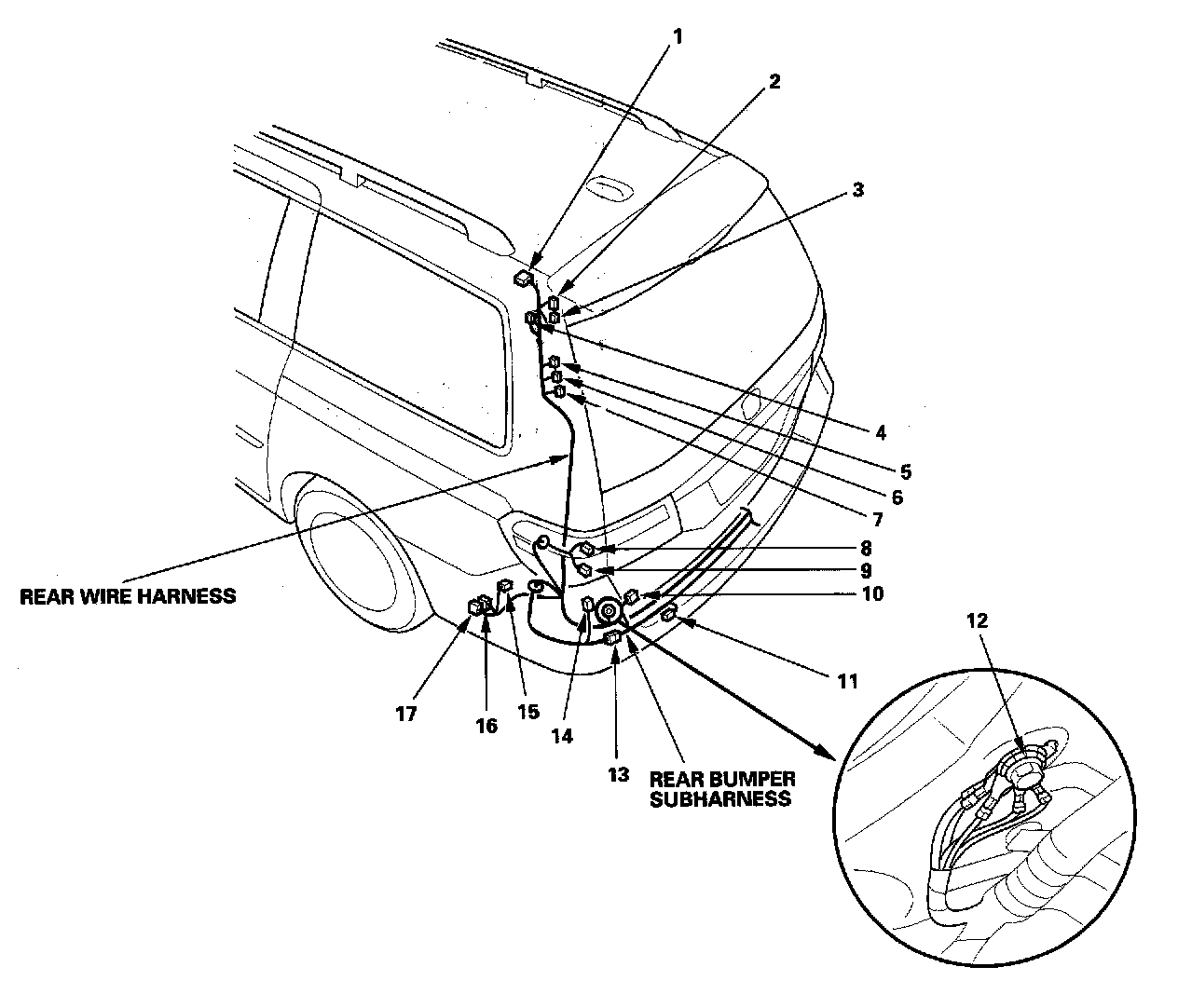

Harness Location View:

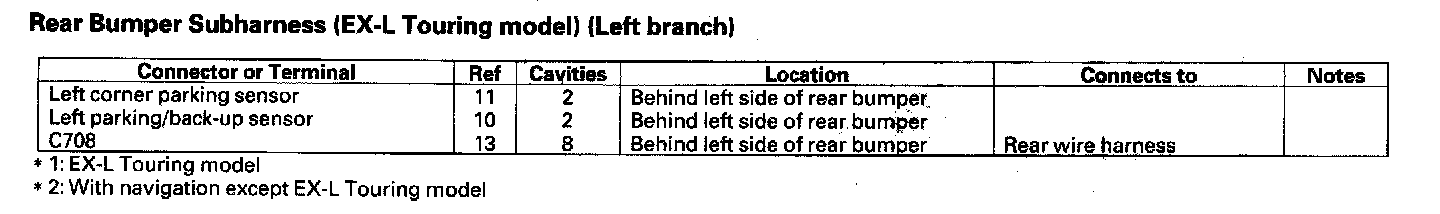

Rear Bumper Subharness (EX-L Touring Model) (Left Branch):
