Home >> Honda >> 2005 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Circuit Diagrams

Circuit Diagrams

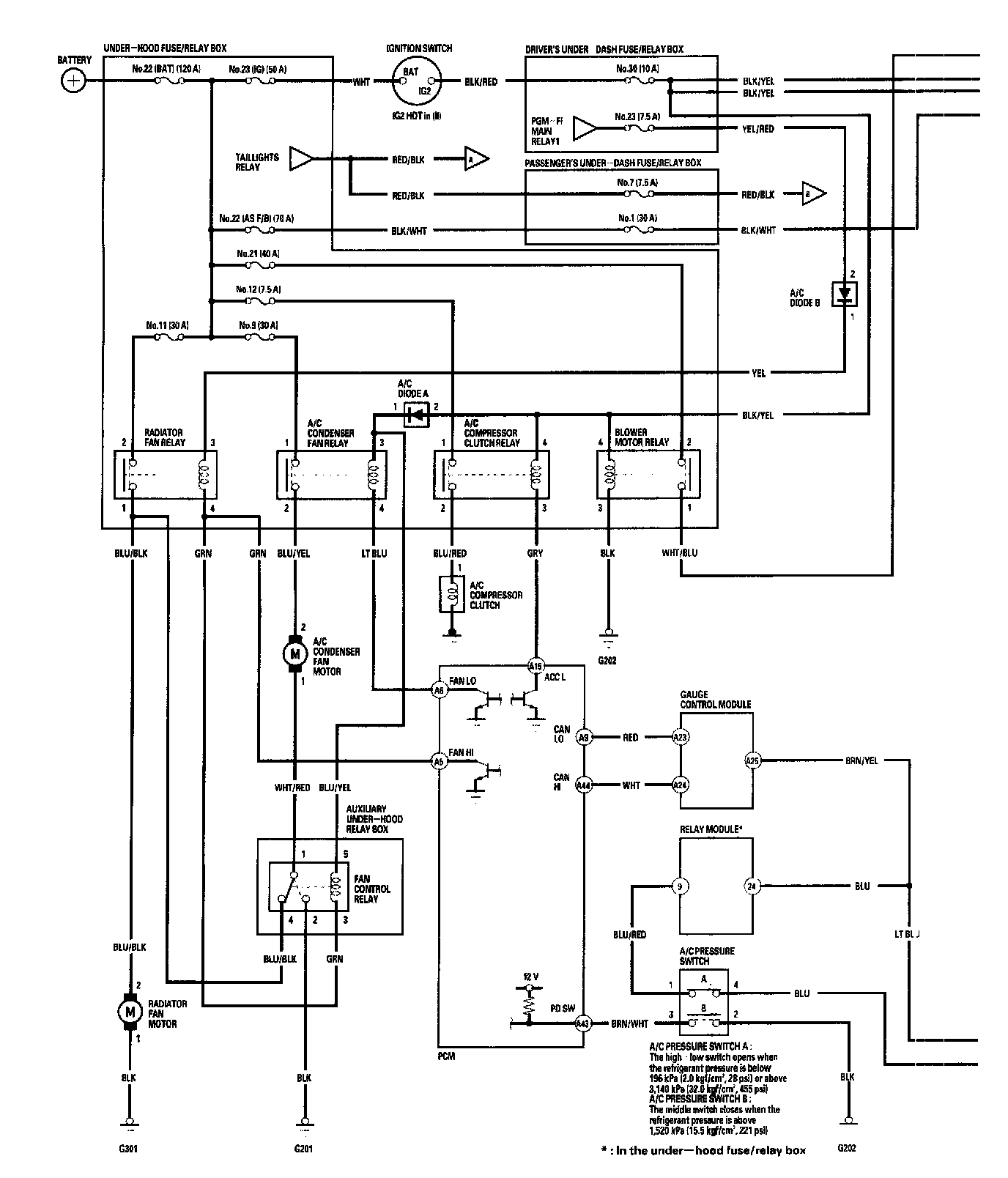

Air Conditioning - Circuit Diagram:

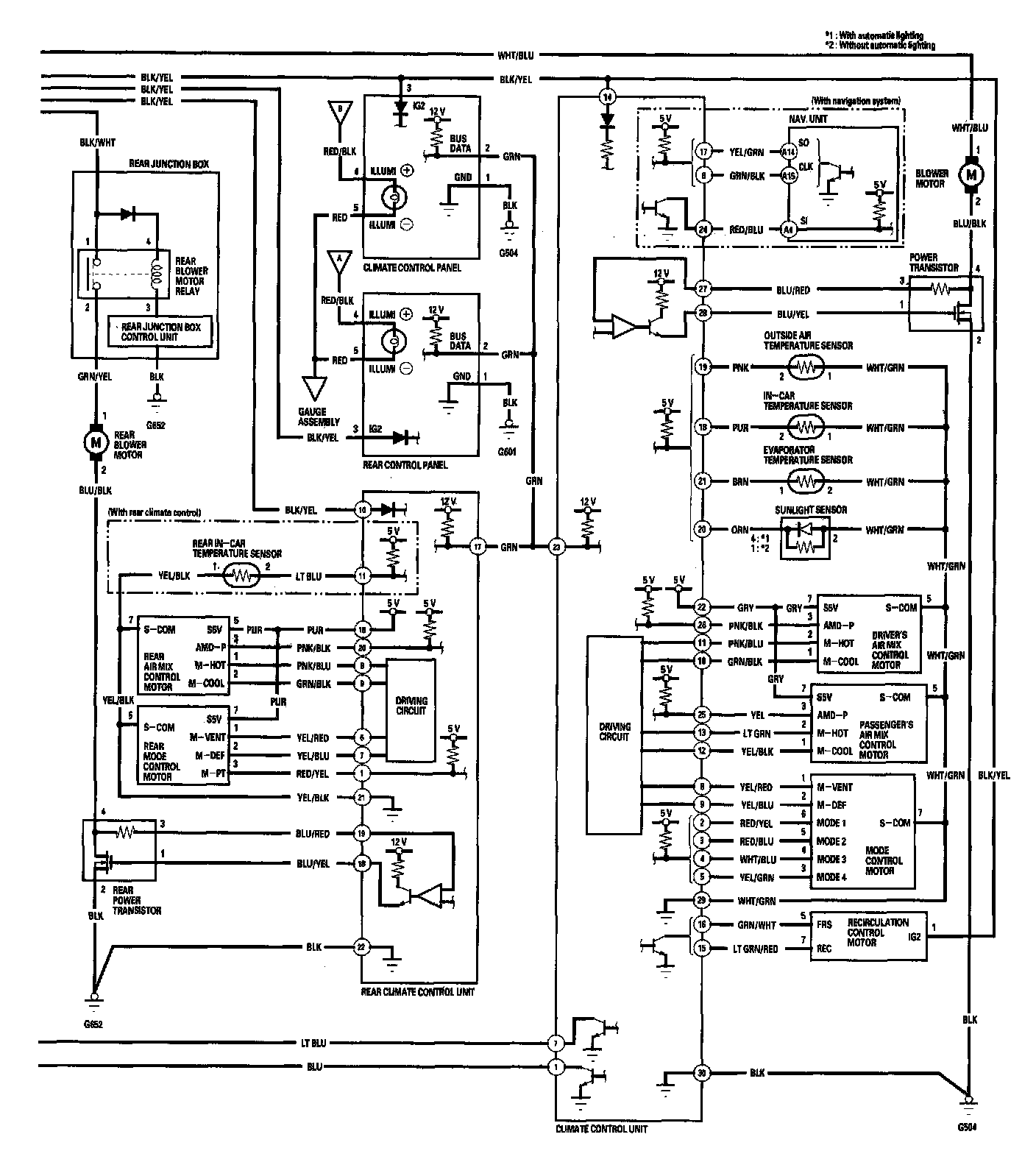

Air Conditioning - Circuit Diagram:

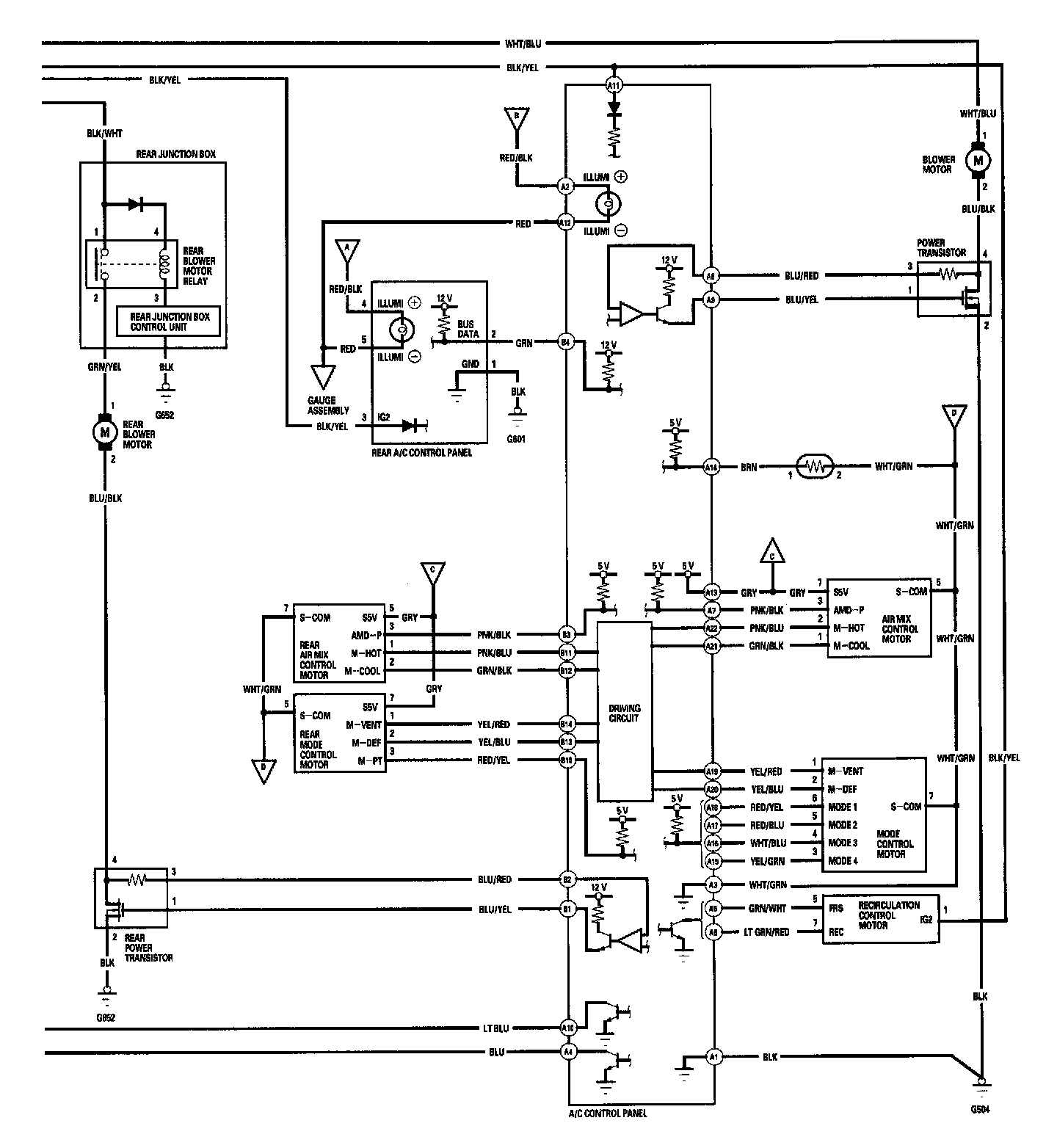

Climate Control - Circuit Diagram:



Climate Control - Circuit Diagram:
