License Plate Light Sub-Harness
License Plate Light Sub-Harness
Harness Location View:
Harness Location View:

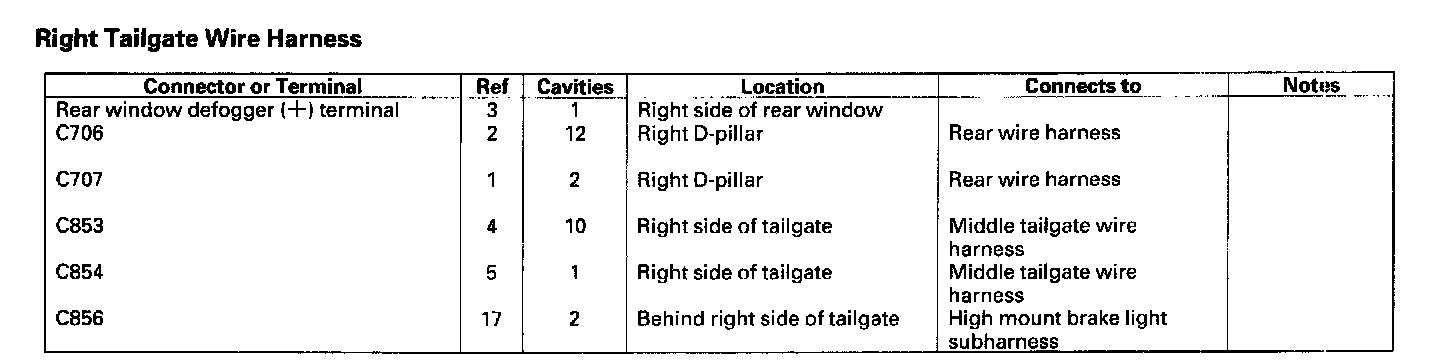

Right Tailgate Wire Harness:

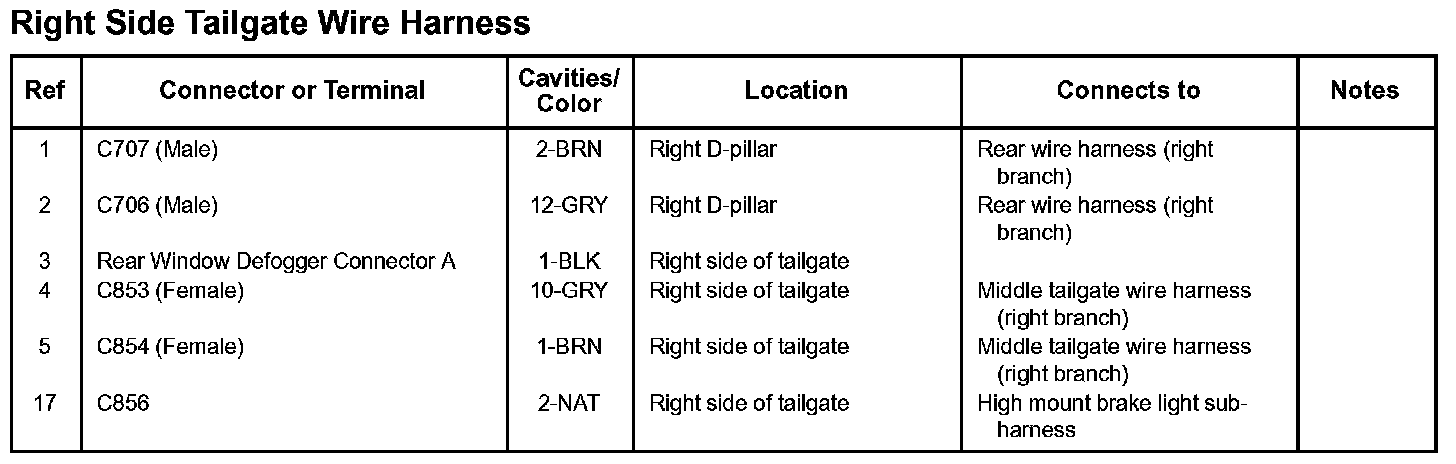

Right Side Tailgate Wire Harness:
