Drive Belt: Service and Repair

Drive Belt Replacement

J35A6 engine

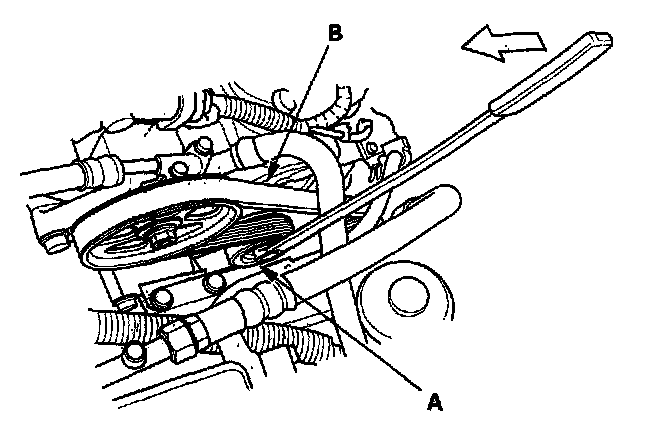

1. Move the auto-tensioner (A) to relieve tension from the drive belt (B), then remove the drive belt.
2. Install the new belt in the reverse order of removal.

NOTE: For belt routing, see the Charging System Component Location Index.

J35A7 engine

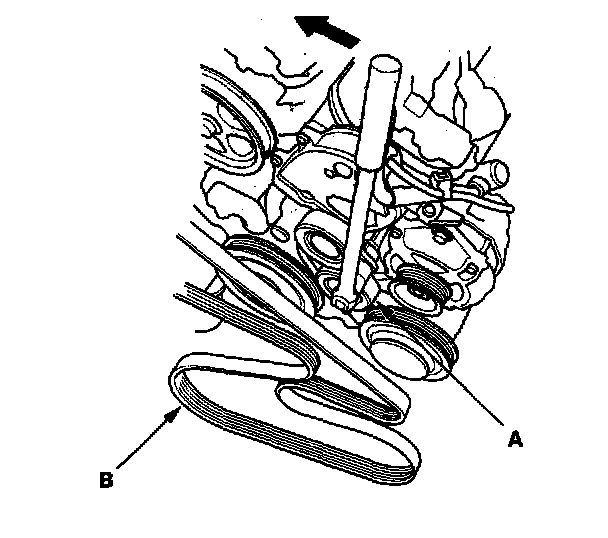

1. Insert a hexagon socket wrench in to the drive belt auto-tensioner (A), and slowly turn the wrench in the direction of the rotation arrow, then remove the drive belt (B).

NOTE: This is a hydraulic type auto-tensioner, and you must turn the wrench slowly.
