Connector Views

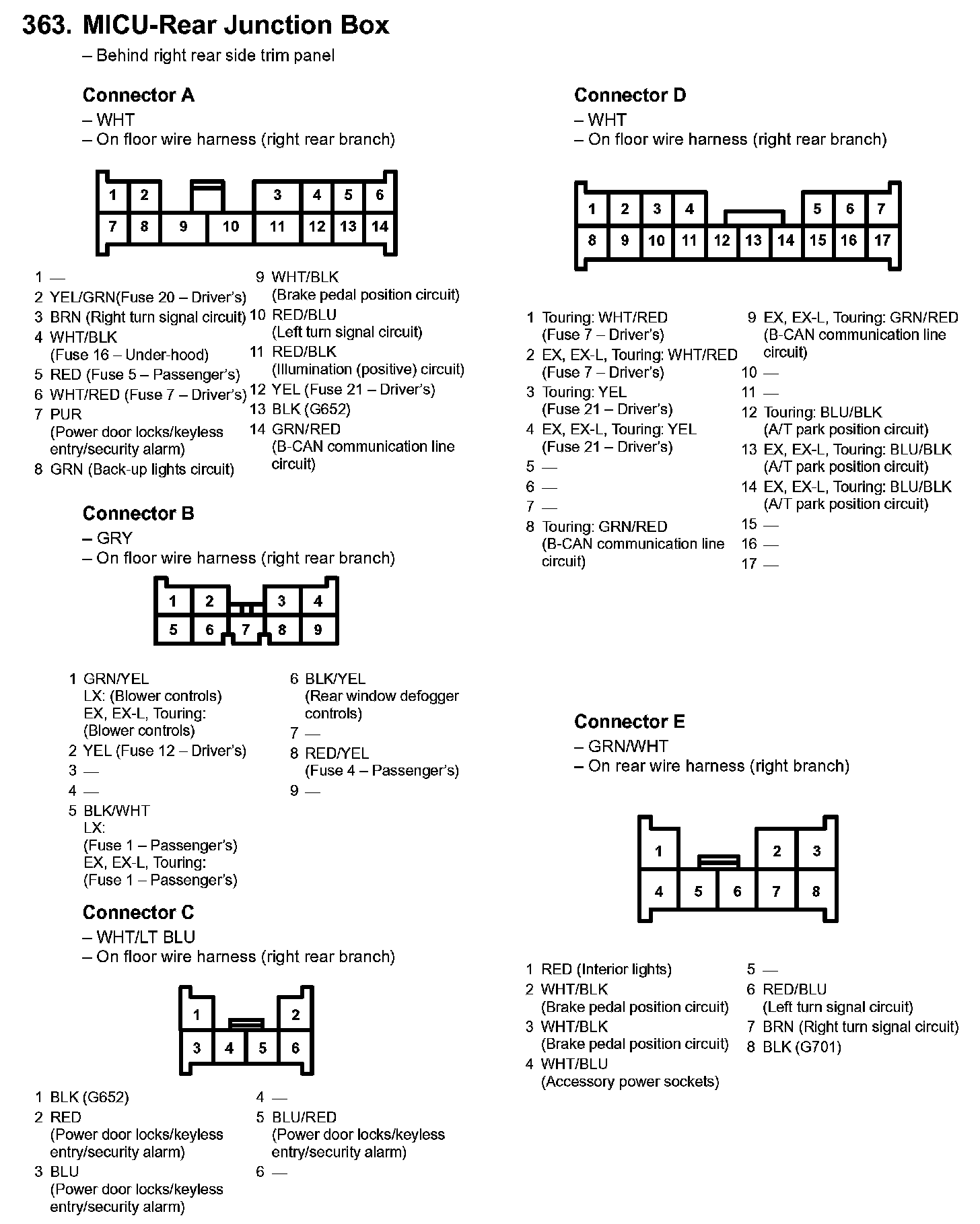

363. MICU-Rear Junction Box Part 1:

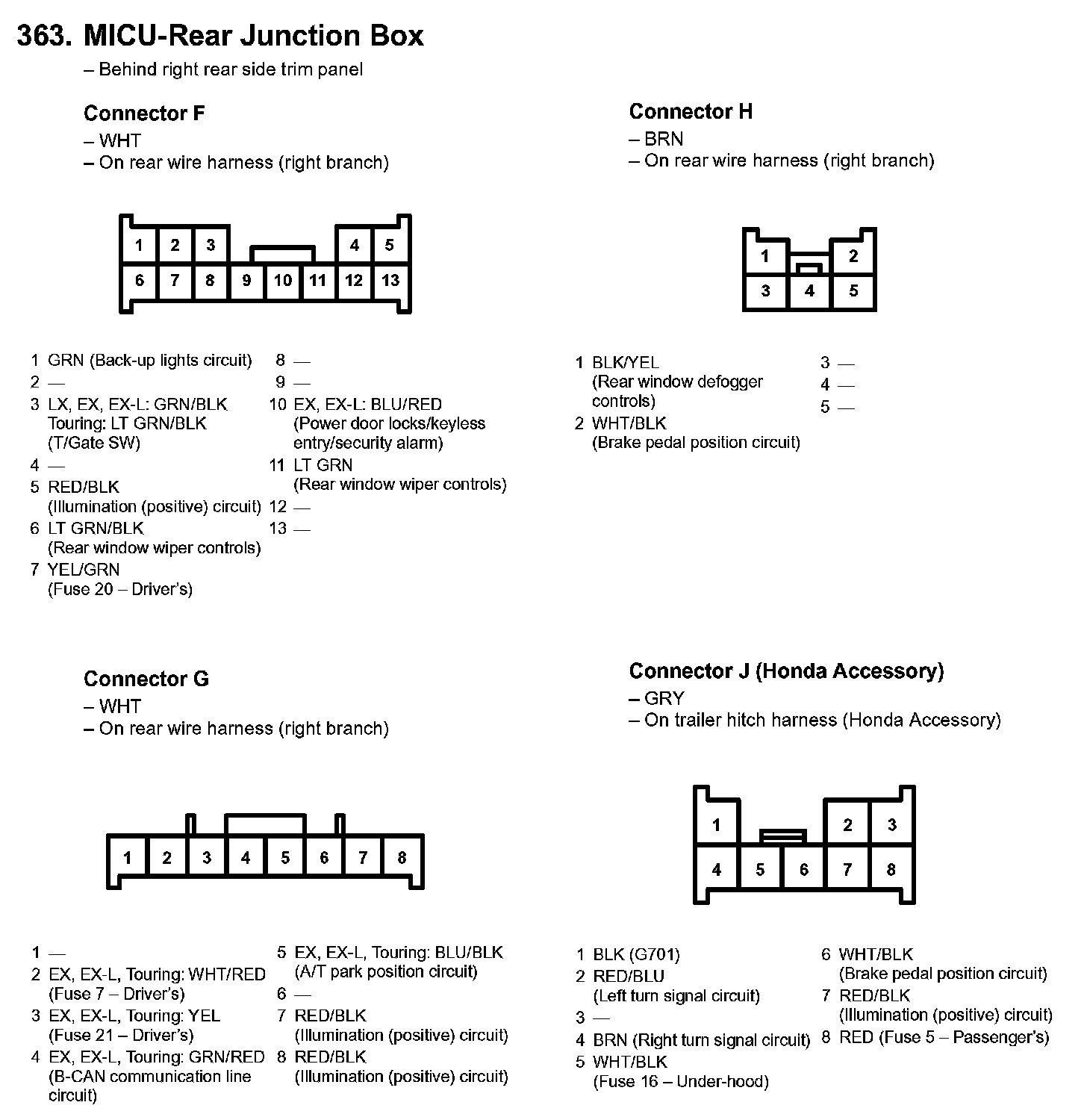

363. MICU-Rear Junction Box Part 2:

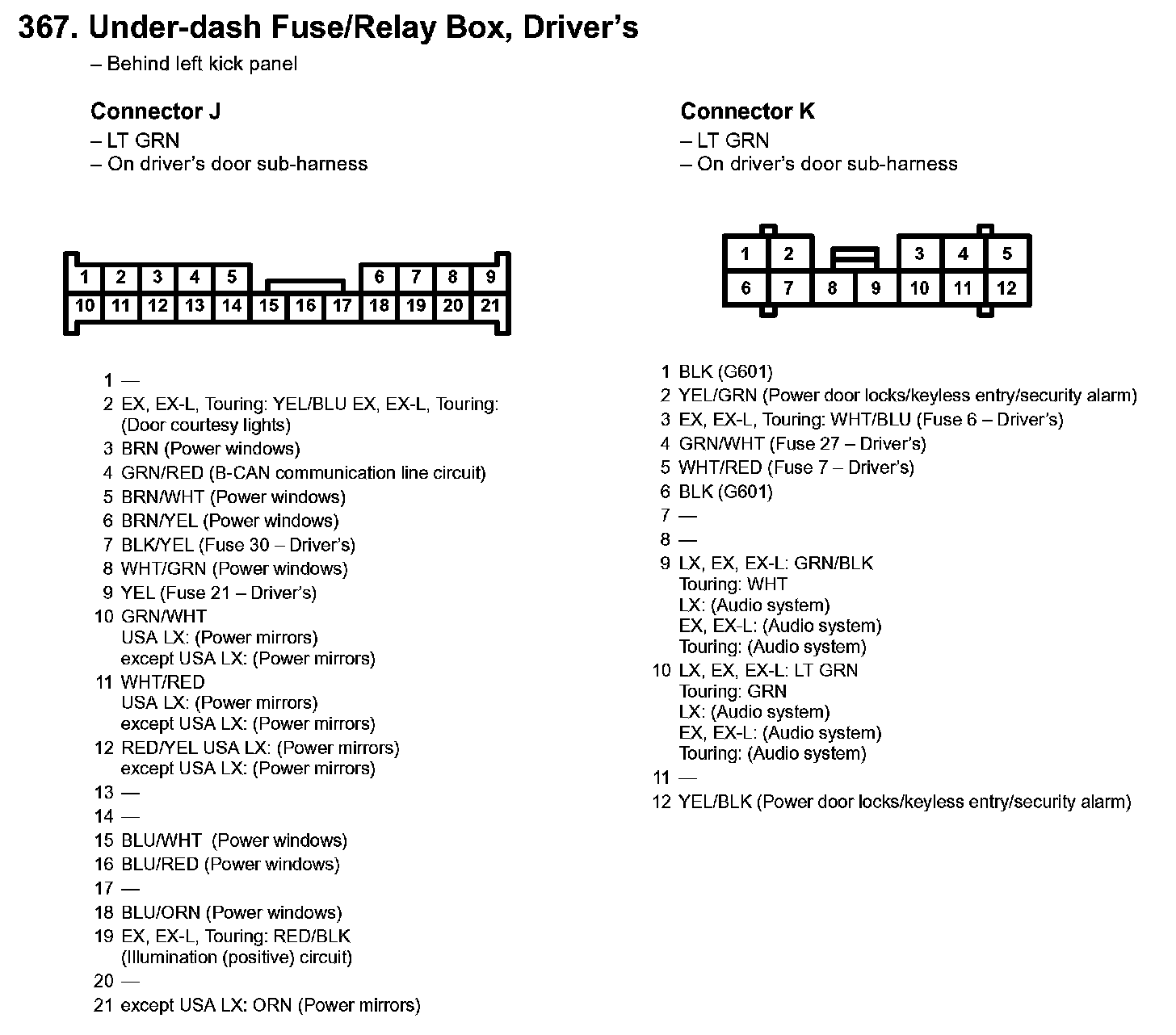

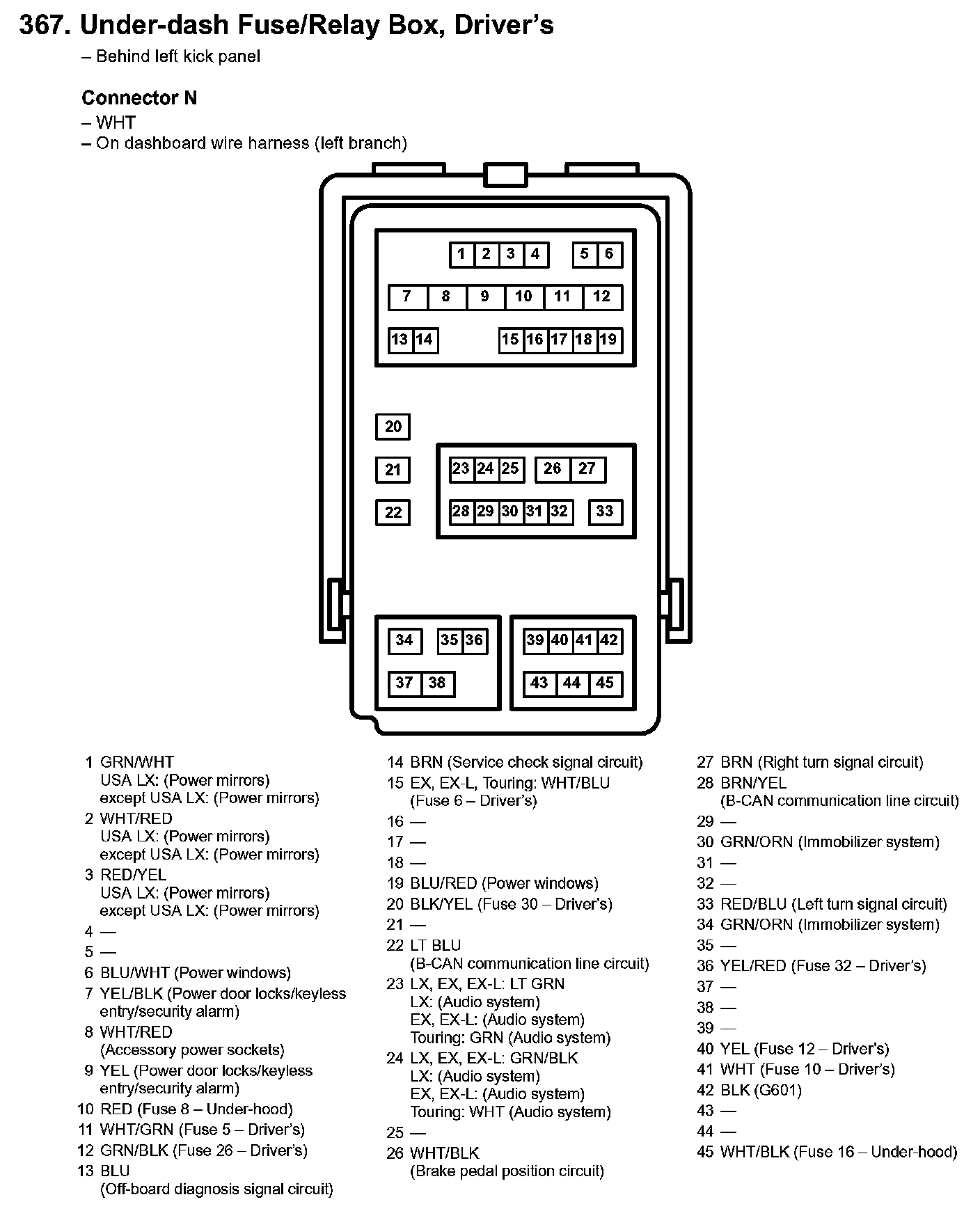

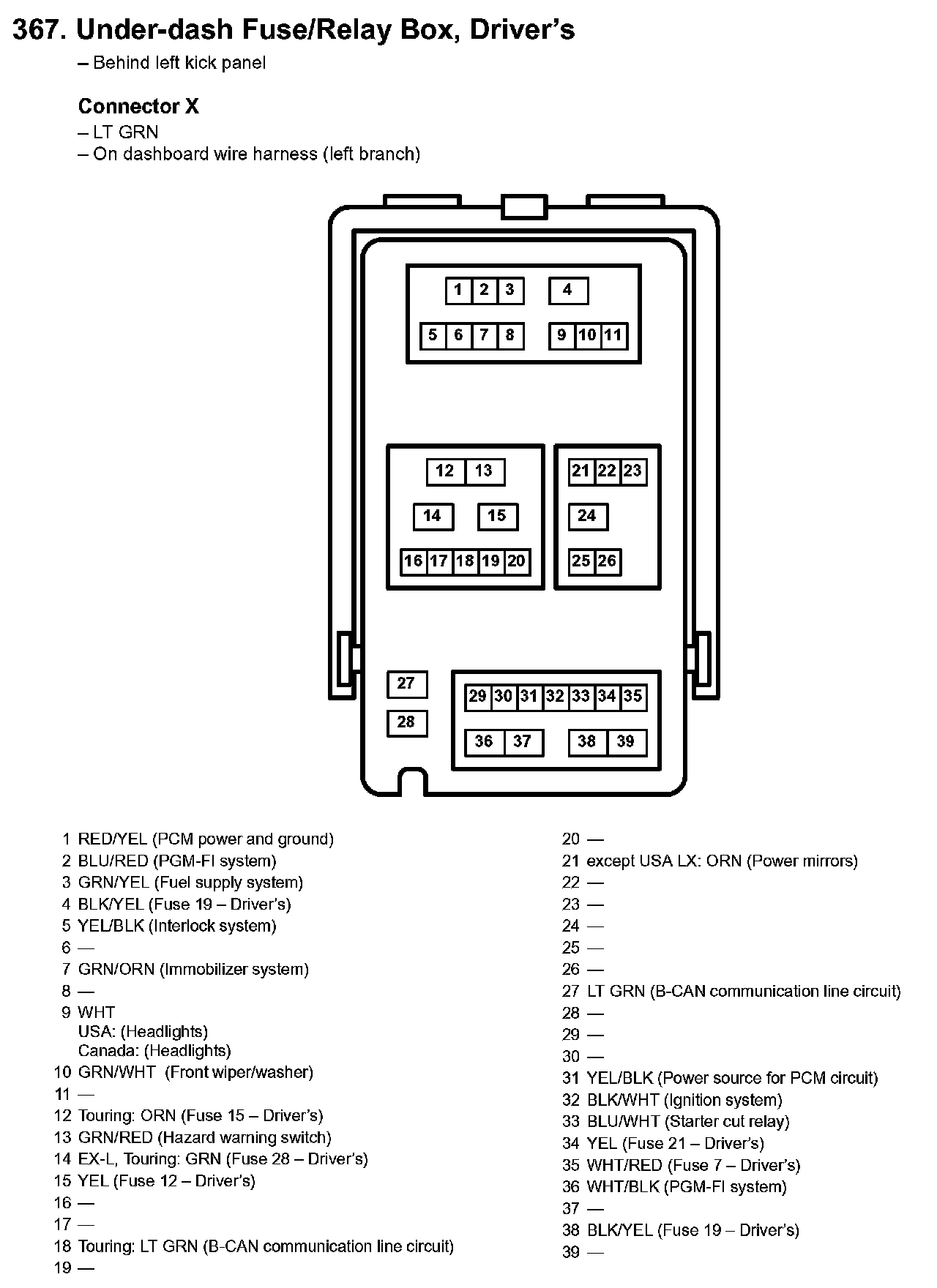

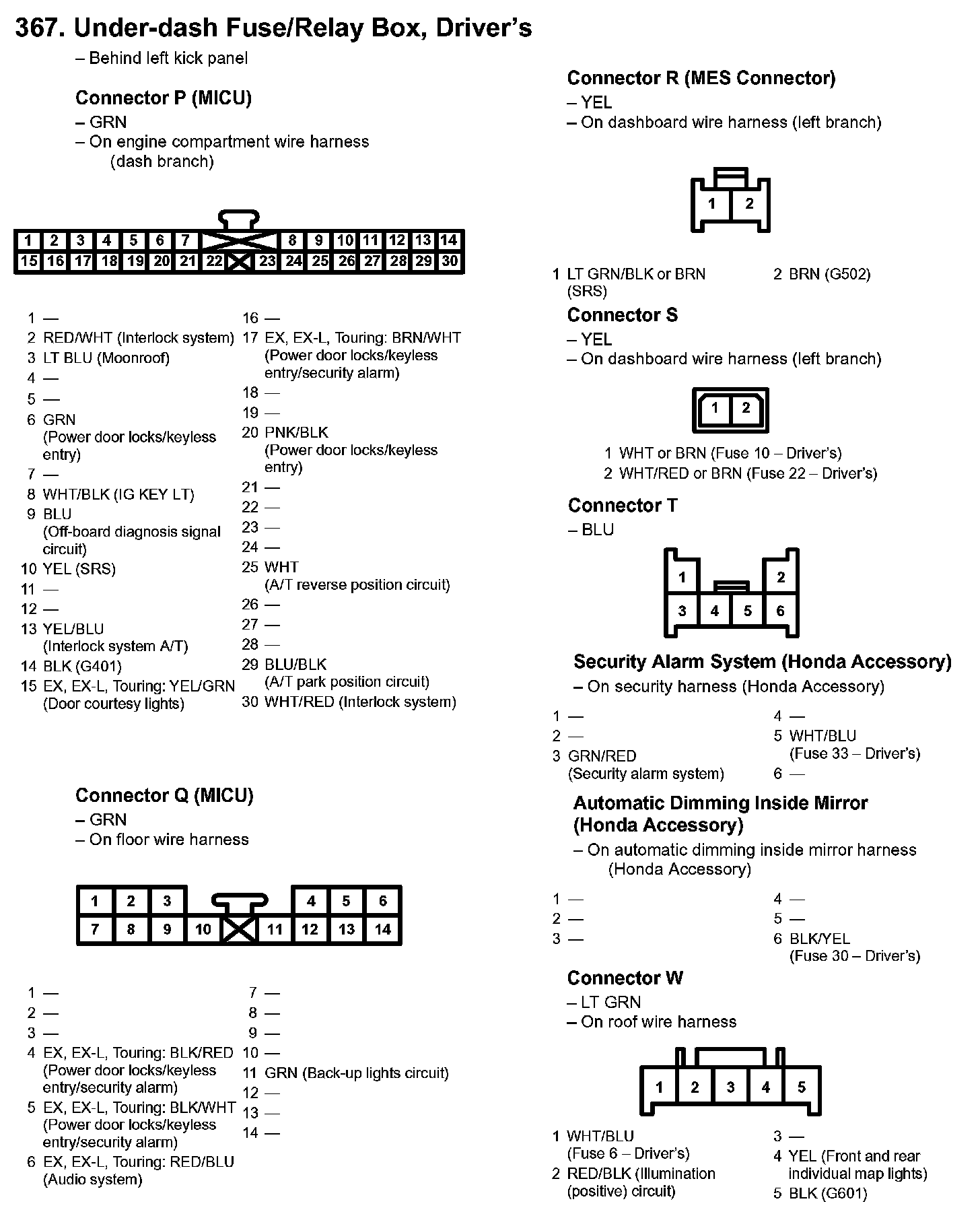

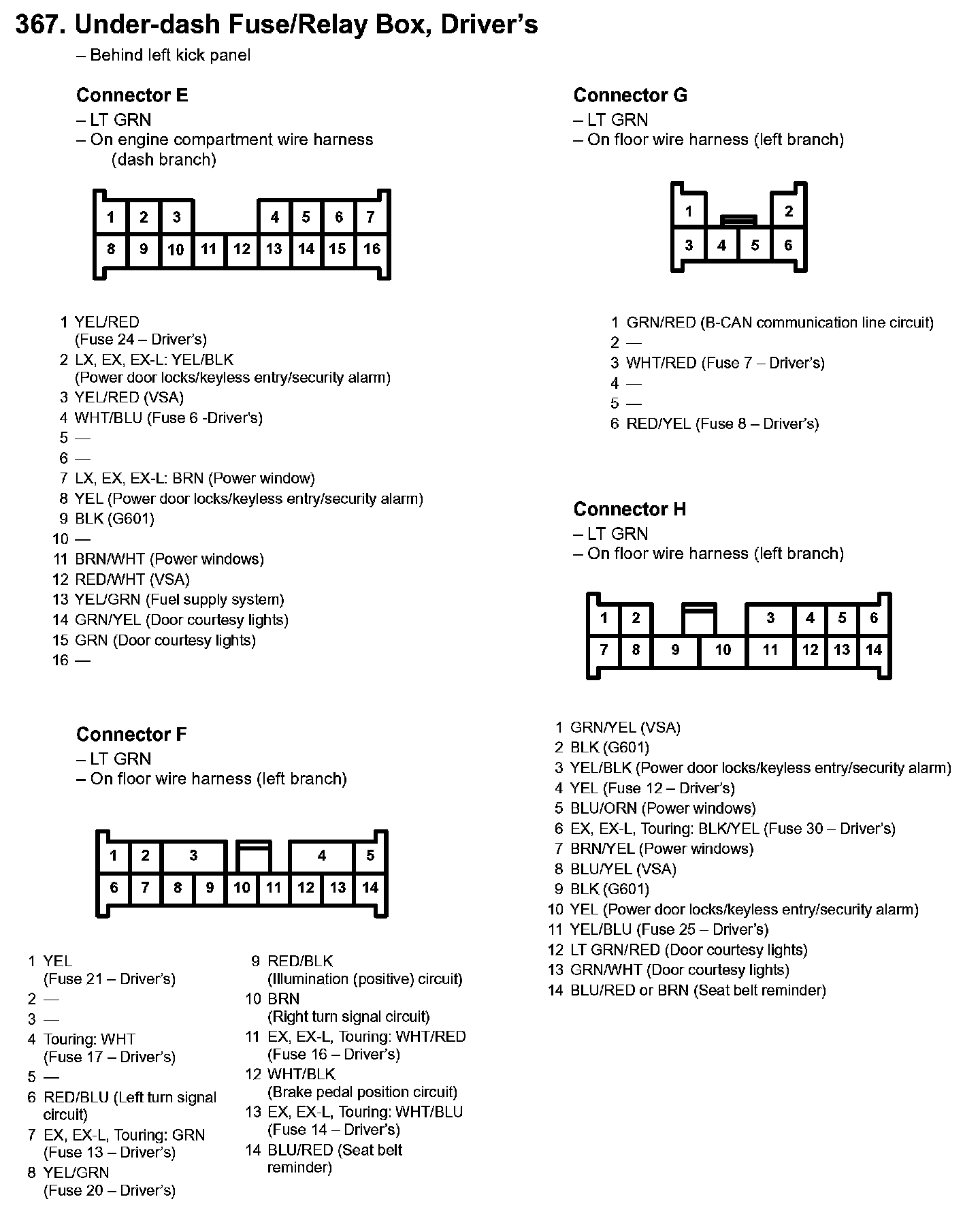

367. Under-dash Fuse/Relay Box, Driver's Part 1:

367. Under-dash Fuse/Relay Box, Driver's Part 2:

367. Under-dash Fuse/Relay Box, Driver's Part 3:

367. Under-dash Fuse/Relay Box, Driver's Part 4:

367. Under-dash Fuse/Relay Box, Driver's Part 5:

367. Under-dash Fuse/Relay Box, Driver's Part 6:

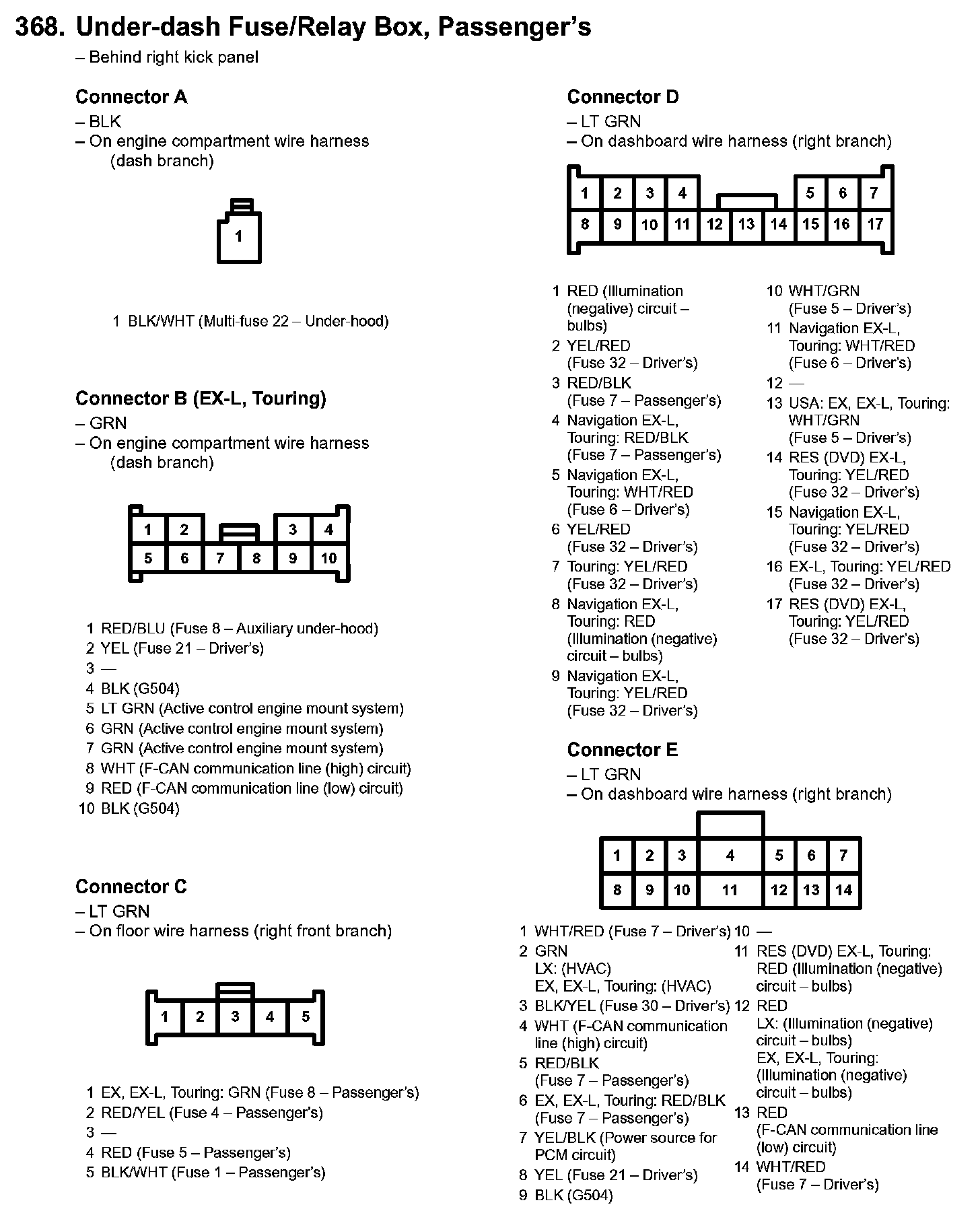

368. Under-dash Fuse/Relay Box, Passenger's Part 1:

368. Under-dash Fuse/Relay Box, Passenger's Part 2:

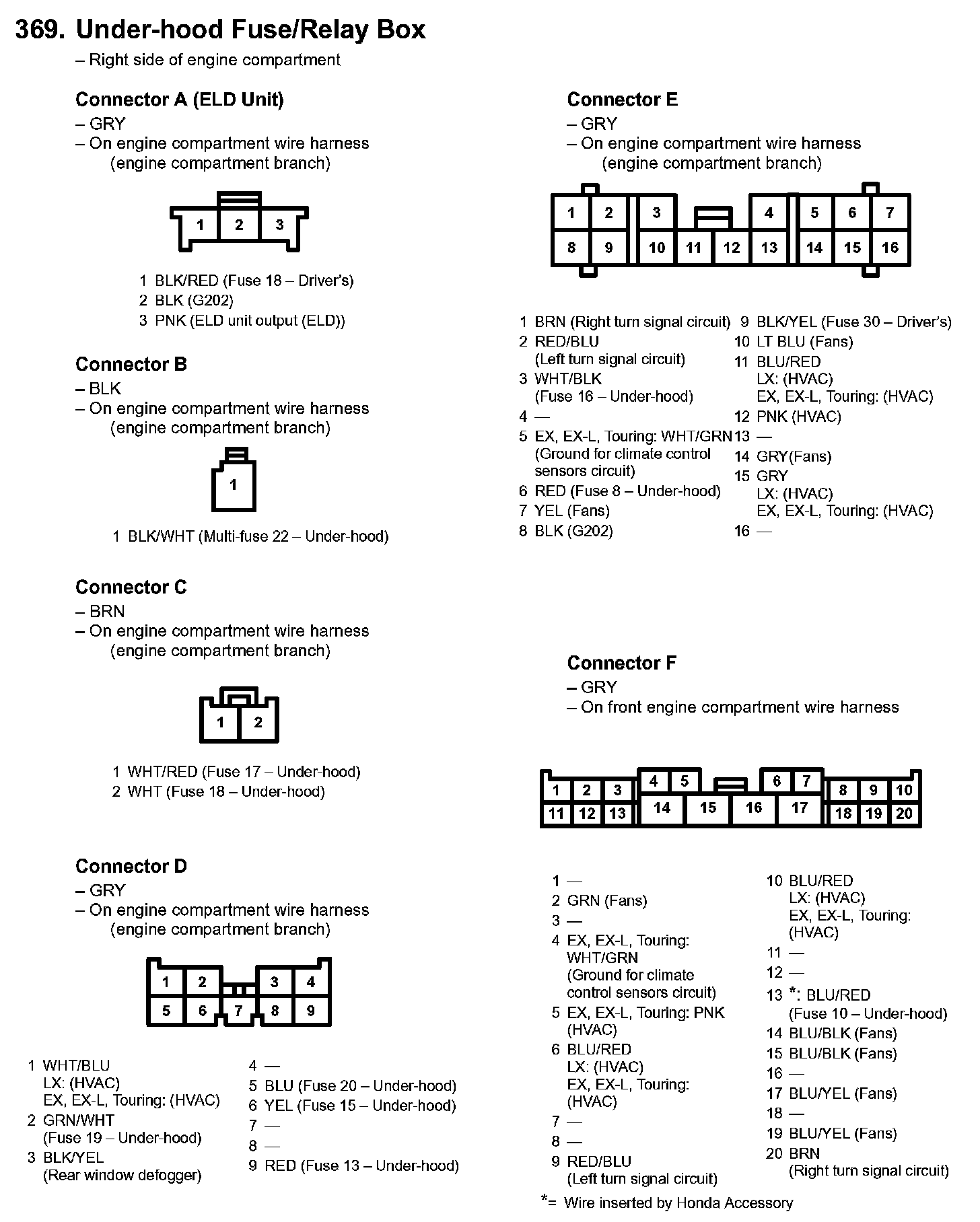

369. Under-hood Fuse/Relay Box Part 1:

369. Under-hood Fuse/Relay Box Part 2:
