Home
>>
Honda
>>
2005
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Lighting and Horns
>>
Hazard Flasher Relay
>>
Locations
Hazard Flasher Relay: Locations

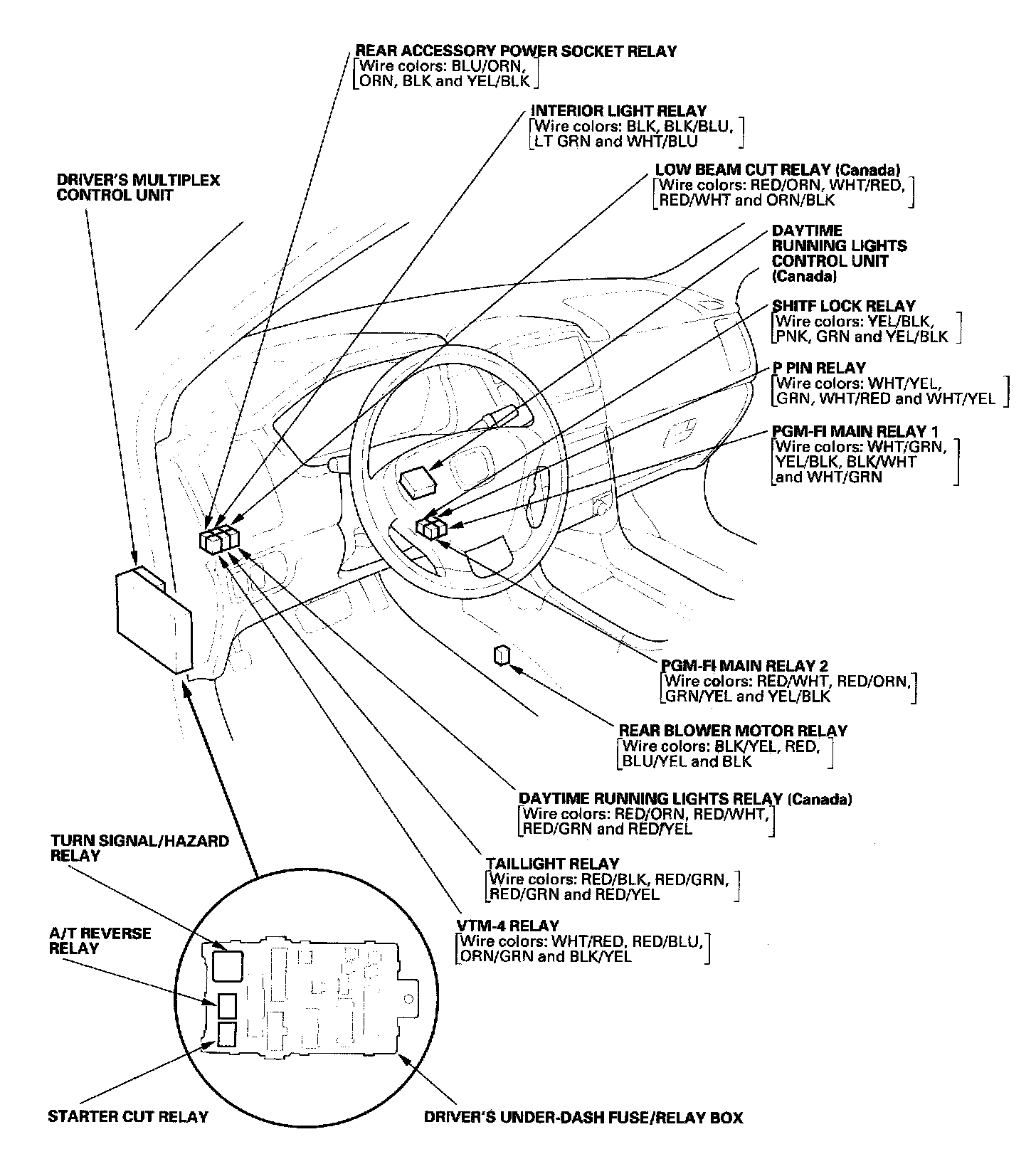

Relay And Control Unit Locations - Dashboard:
