Child Seat Tether Attachment: Service and Repair

Third Row Child Seat Tether Anchor Replacement

1. Remove the rear trim panel.

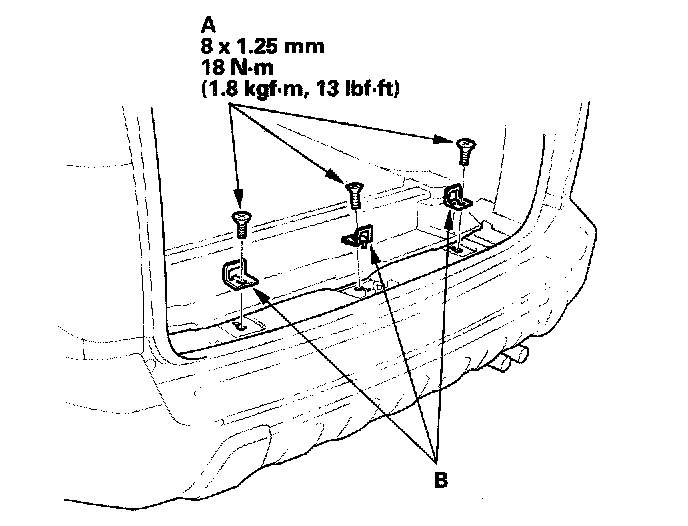

2. Remove the screws (A), and remove the third row child seat tether anchors (B).
3. Install the anchor in the reverse order of removal, and apply liquid thread lock to the threads of the child seat tether anchor screws.
