Transfer Assembly Removal

Transfer Assembly Removal

NOTE: Make sure the lifts, jacks, and safety stands are placed properly.

1. Raise the front of the vehicle, and support it with safety stands.
2. Set the parking brake, and block both rear wheels securely.
3. Drain the manual transmission fluid. Reinstall the drain plug with a new drain plug washer.

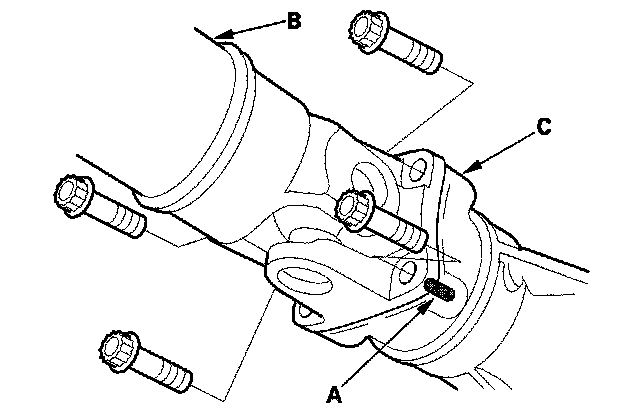

4. Make reference marks (A) across the propeller shaft (B) and the companion flanges (C).
5. Separate the propeller shaft from the transfer assembly.

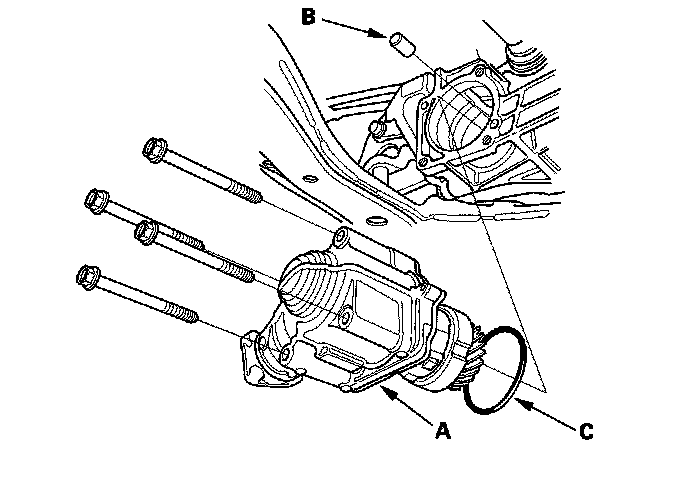

6. Remove the transfer assembly (A), the dowel pin (B), and the O-ring (C).
