Programming and Relearning

Registration for Immobilizer System

NOTE: The transmitter is automatically programmed to the vehicle when a transponder is programmed by the HDS.

1. Turn the ignition switch ON (II).
2. Connect the HDS to the data link connector.
3. Select IMMOBILIZER from the SYSTEM SELECT menu.

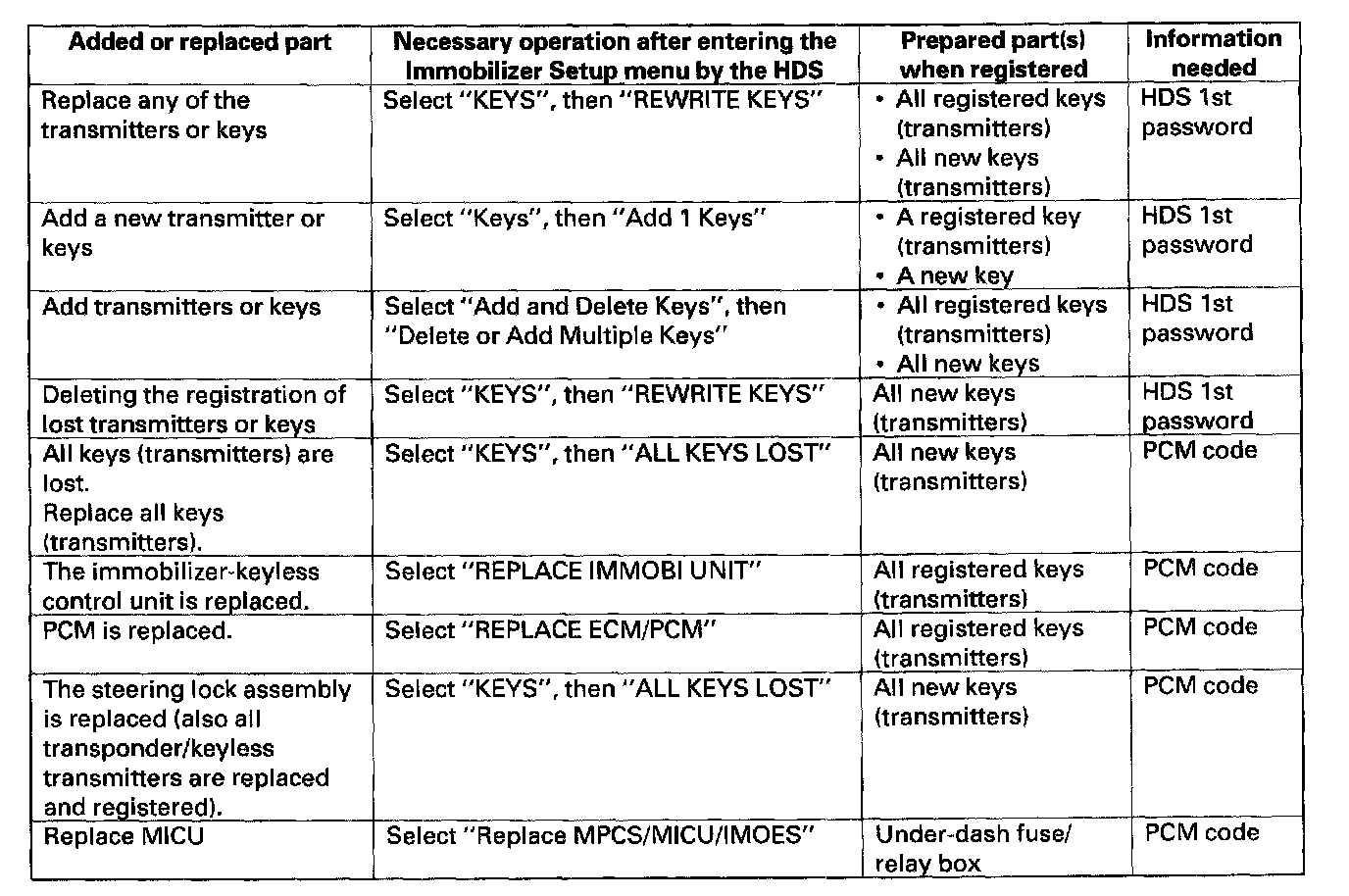

4. Select the suitable menu from the HDS indications as per the table.

NOTE: The immobilizer-keyless control unit can store up to six transponders (transmitters).
