Rocker Arm Assembly Installation

Rocker Arm Assembly Installation
1. If the rocker arm assembly is disassembled, reassemble the rocker arm assembly.

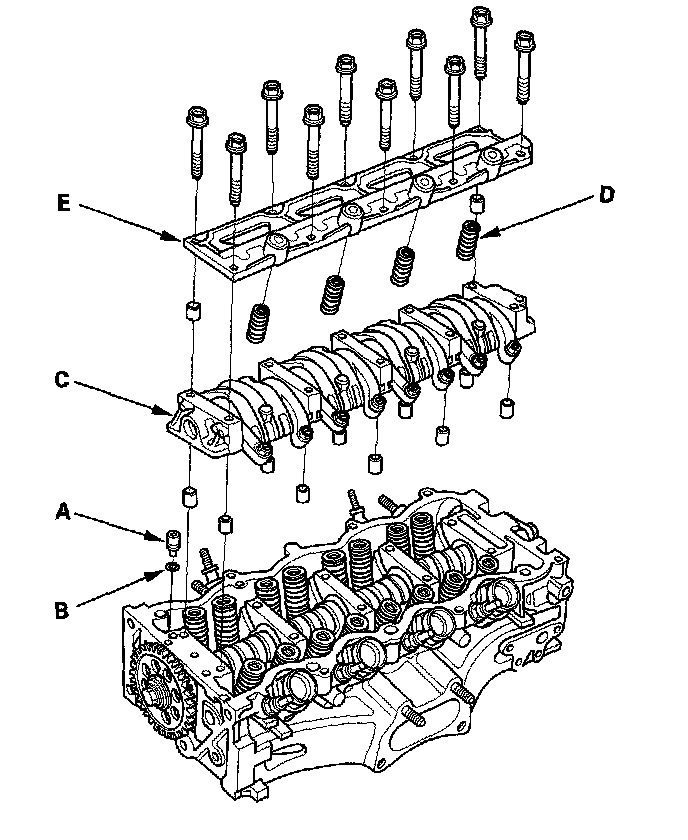

2. Install the oil control orifice (A) with a new O-ring (B), then install the rocker arm assembly (C).
3. Install the lost motion assembles (D) and the lost motion holder (E).

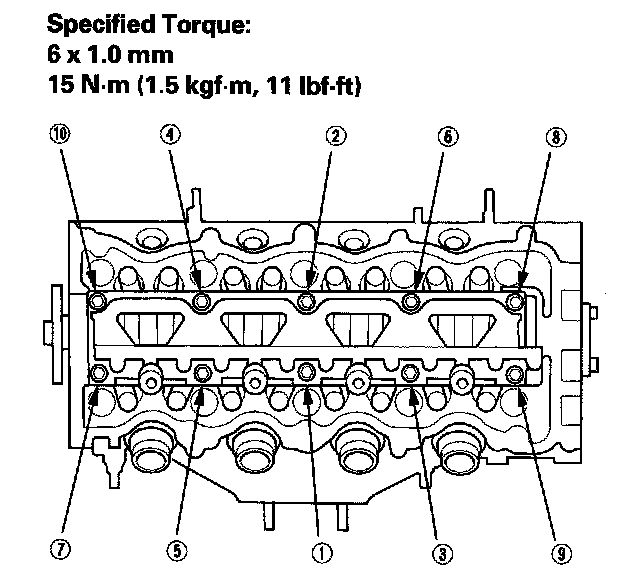

4. Tighten each bolts two turns at a time in sequence.
5. Adjust the valve clearance.
6. Install the cylinder head cover.
