Cabin Air Filter / Purifier: Service and Repair

Dust and Pollen Filter Replacement

1. Open the glove box. Remove the glove box stop on each side, then let the glove box hang down.




2. Remove the dust and pollen filter assembly (A) from the evaporator.

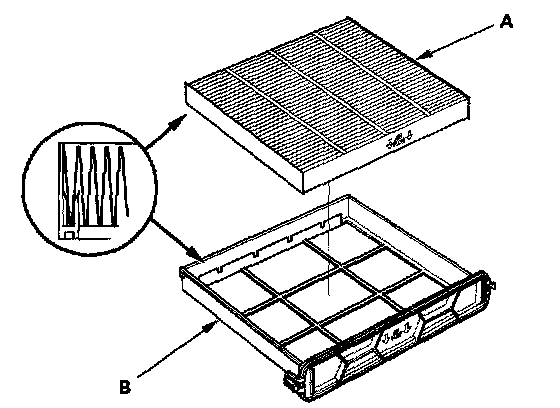

3. Remove the filter (A) from the housing (B), and replace the filter.
4. Install the filter in the reverse order of removal. Make sure that there is no air leaking out of the evaporator.
5. If the maintenance minder required to replace the dust and pollen filter, reset the maintenance minder, and this procedure is complete. If the maintenance minder did not require to replace the dust and pollen filter, go to step 6.
6. Select BODY ELECTRICAL with the HDS.
7. Select ADJUSTMENT in the GAUGES MENU with the HDS.
8. Select RESET in the MAINTENANCE MINDER with the HDS.
9. Select MAINTENANCE SUB ITEM 2 with the HDS.
