Wiper Arm: Adjustments

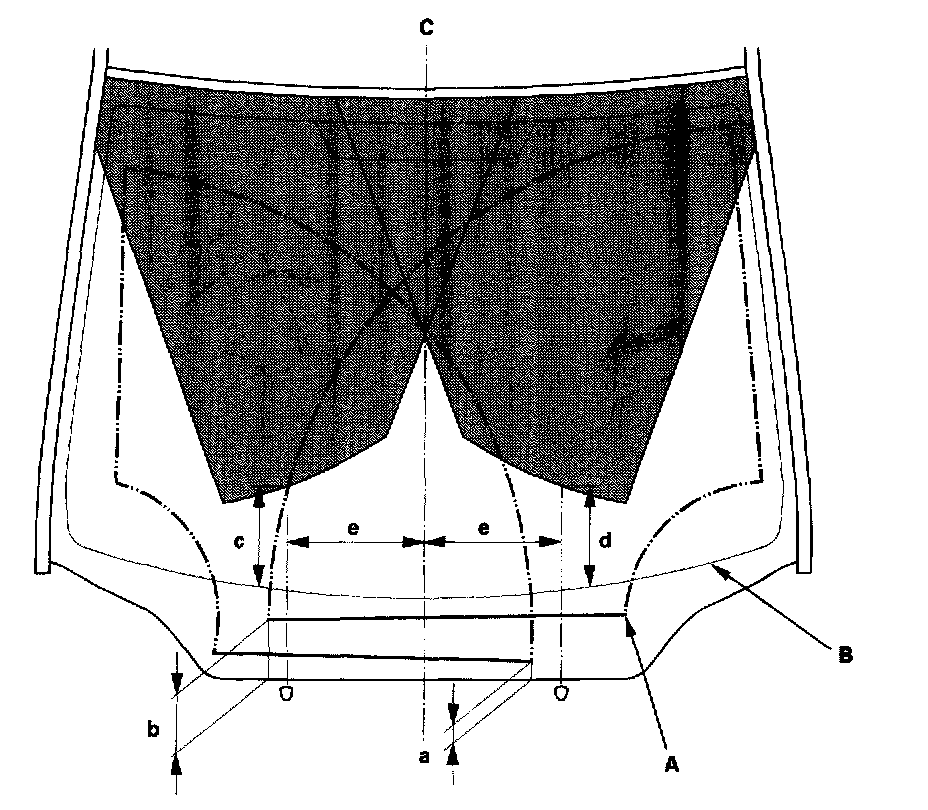

Wiper Arm/Nozzle AdjustmentWiper arms stop position
1. When the wiper arms stop at the automatic stop position, confirm that they are at the standard position.
2-door
a: Position at about 1.1 in. (29 mm) from the top of cowl cover (A)
b: Position at about 4.1 in. (106 mm) from the top of cowl cover (A)
4-door
a: Position at about 0.9 in. (23 mm) from the top of cowl cover (A)
b: Position at about 3.8 in. (96 mm) from the top of cowl cover (A)
Washer nozzle position
2. When you turn on the washers, confirm 50% or more of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzles.
2-door
c: Position at about 11.8 in. (302 mm) from the top of the black ceramic area (B) at the lower windshield
d: Position at about 11.8 in. (302 mm) from the top of the black ceramic area (B) at the lower windshield
e: Position at about 9.8 in. (250 mm) from the windshield center line (C)
4-door
c: Position at about 7.6 in. (192 mm) from the top of the black ceramic area (B) at the lower windshield
d: Position at about 7.6 in. (192 mm) from the top of the black ceramic area (B) at the lower windshield
e: Position at about 9.8 in. (250 mm) from the windshield center line (C)
