Navigation Display: Service and Repair
Navigation Display Removal/Installation 1.
Remove the climate control panel.
2.

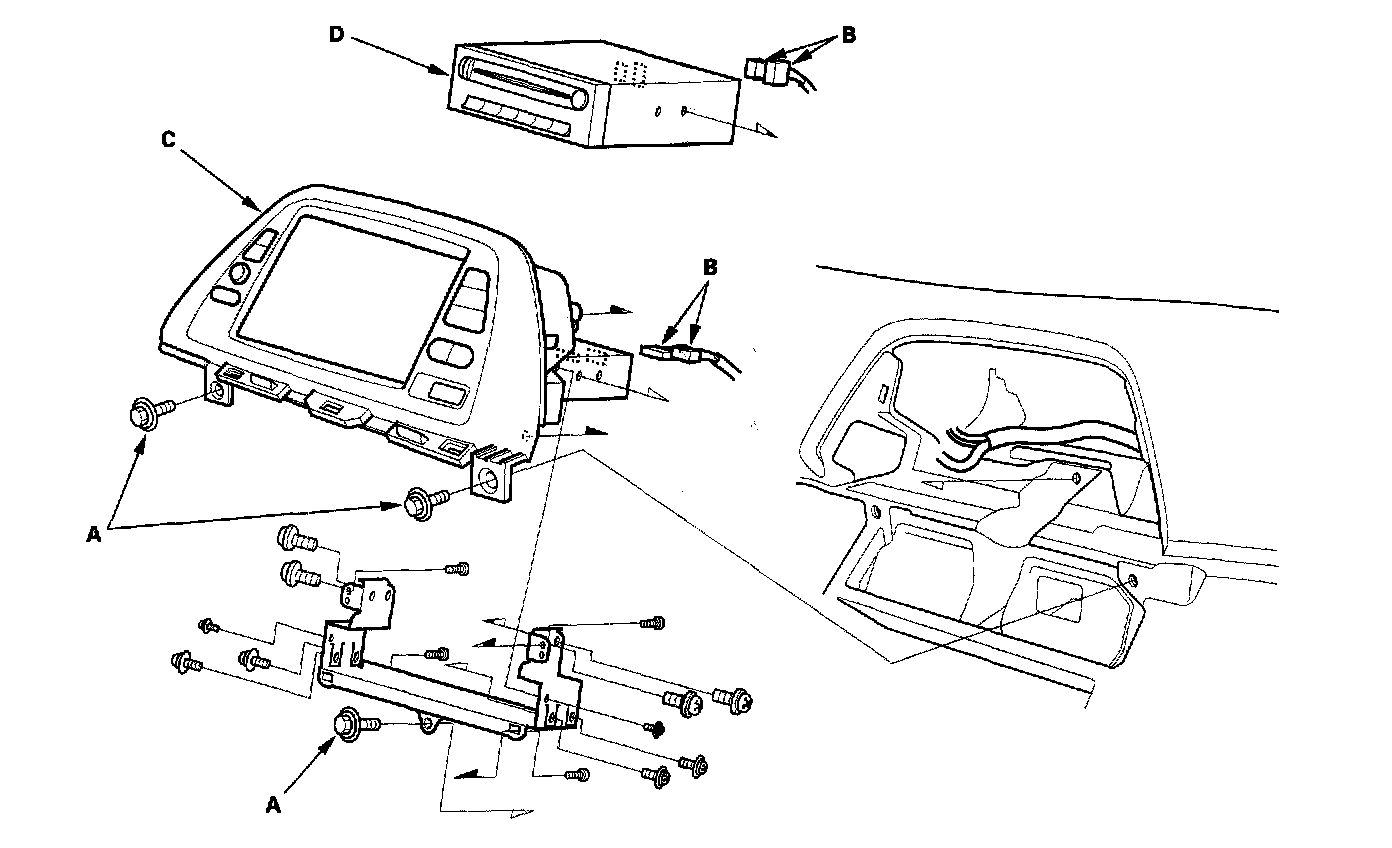

Remove the three bolts (A) and disconnect the four connectors (B), and then remove the
navigation display (C) with the
CD changer (D).
3.
Separate the
navigation display and the
CD changer from the bracket.
4.
Install in the reverse order of removal.
