Open/Close Function Of the Display Does Not Work

OPEN/CLOSE function of the display does not work

1. Turn the ignition switch OFF.
2. Disconnect the navigation display connector B (10P) and CD changer 18P connector.

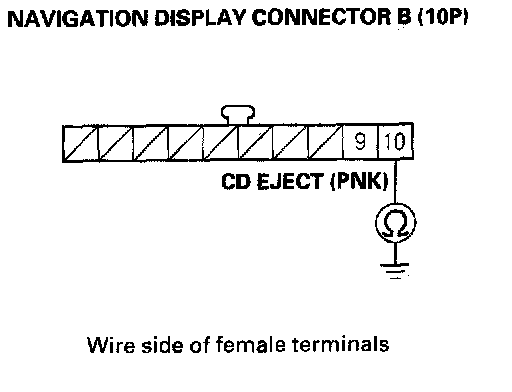

3. Check for continuity between navigation display connector B (10P) terminal No. 10 and body ground.

Is there continuity?

YES - Repair short in the wire between navigation display connector B (10P) terminal No. 10 and CD changer.

NO - Go to step 4.

4. Substitute a known-good navigation display, and check to see if the display opens and closes normally.

Does the display work normally?

YES - Replace the navigation display.

NO - Replace the CD changer.
