Rearview Mirror Replacement

Rearview Mirror Replacement

Touring Models

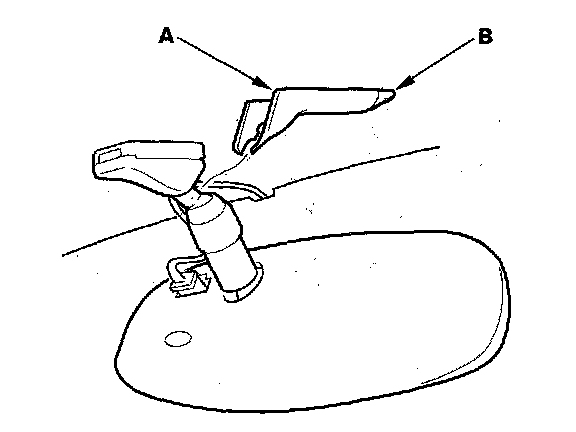

1. Slide the mirror harness upper cover (A) forward, then remove the mirror harness cover (B).

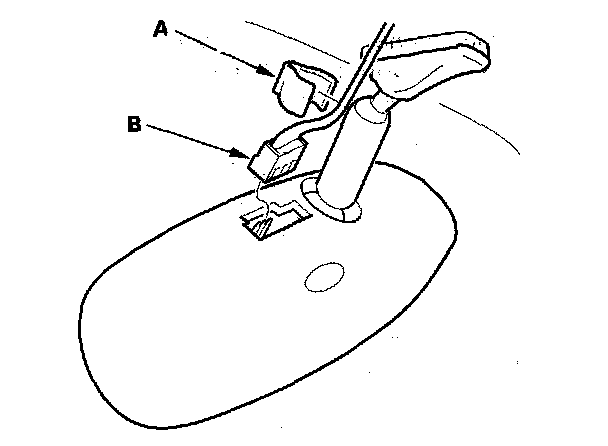

2. Remove the harness holder (A), then disconnect the connector (B).

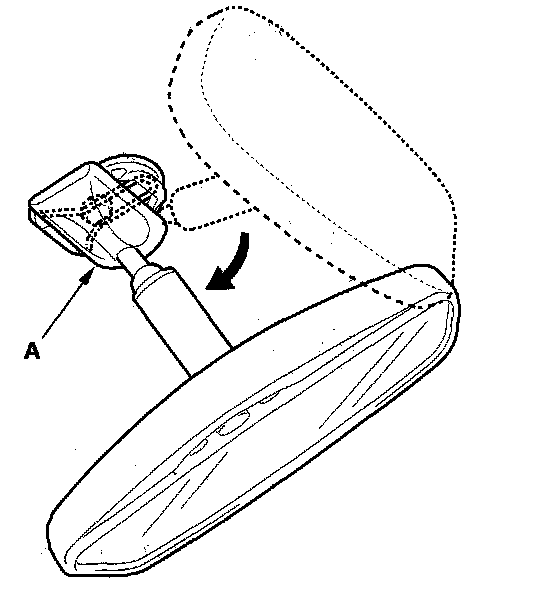

3. Turn the rearview mirror base (A) 9O degrees.




4. Slide the rearview mirror (A) down toward the bottom of the windshield to detach it from the spring (B) in the mount (C).
5. If necessary, remove the spring from the mount.
6. Install the rearview mirror in the reverse order of removal.

VAN, LX, and EX Models

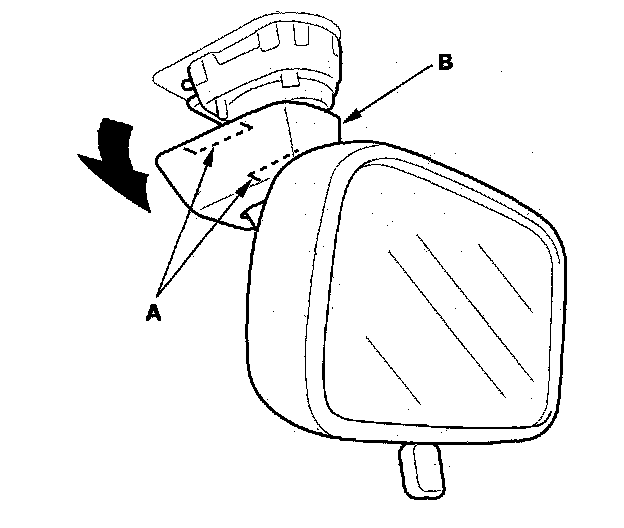

1. Release the hooks (A), then pull the mirror base cover (B) down.

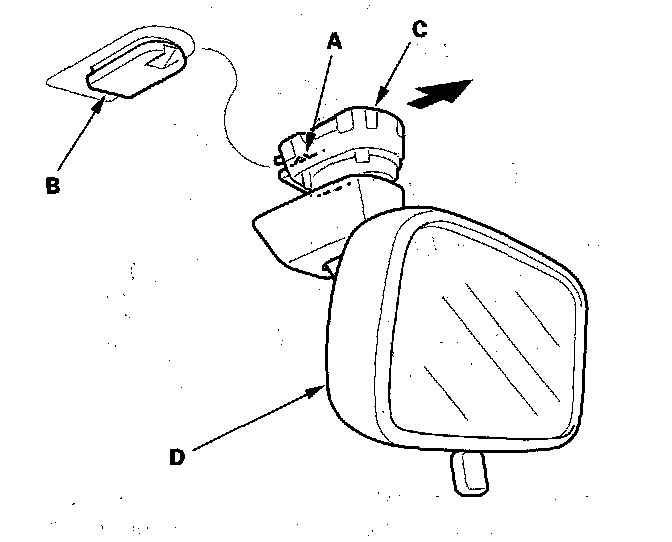

2. Pull the hook (A) down to release it from the mount (B), and the slide the mirror base (C) rearward, then remove the rearview mirror (D).

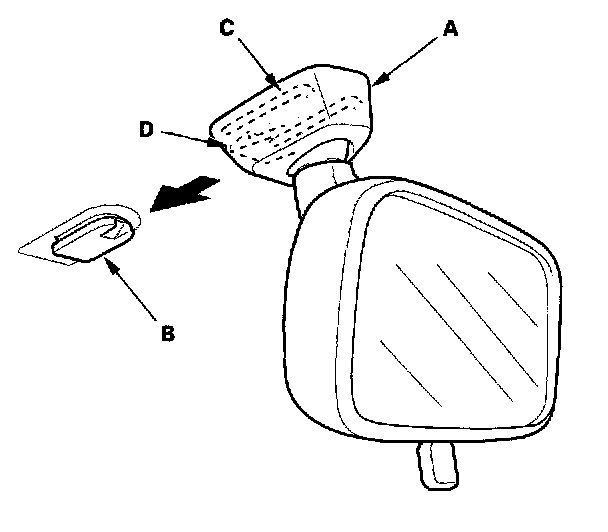

3. Fit the mirror base (A) over the mount (B), and secure the rearview mirror by the spring (C) and hook (D).
