Third Row Seat Latch Cable Replacement
Third Row Seat Latch Cable ReplacementSpecial Tools Required
KTC trim tool set SOJATP2O14
NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to kink the cables.
- Put on gloves to protect your hands.
1. Remove the third row seat.
2. Remove these items from the seat frame:
- Seat-back cover/pad
- Seat cushion cover/pad
3. Reassemble the left seat-back frame and left seat cushion frame.
4. From the back of the seat foot (A), detach the clips, then remove the rear cover (B).
5. Disconnect the latch cable from the latch.

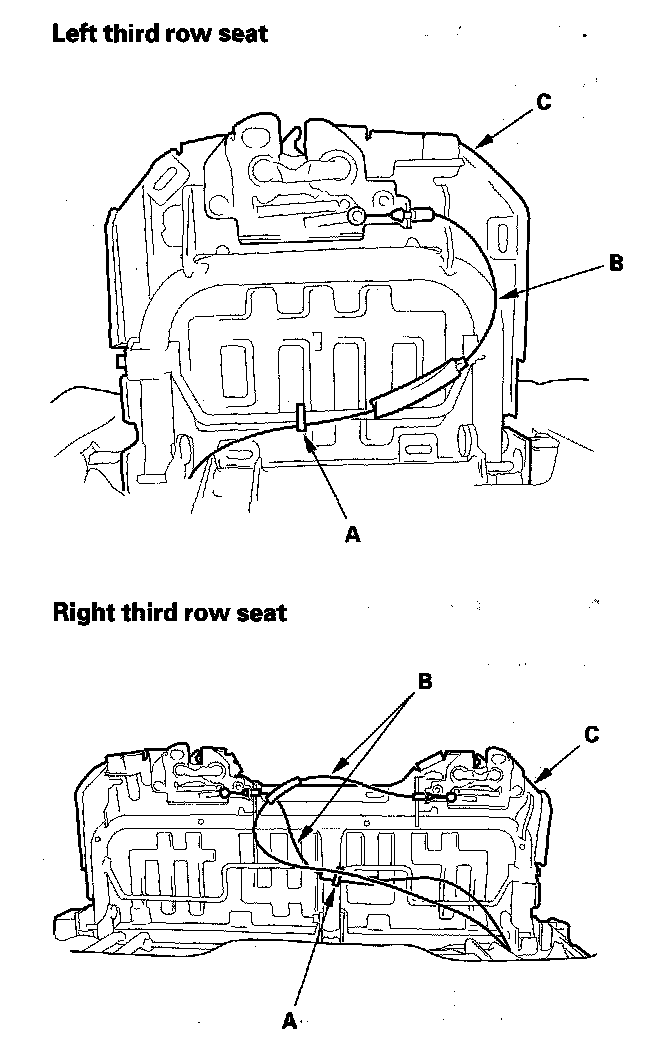

6. Release the wire tie (A) fastening the latch cable (B) on the foot frame (C).

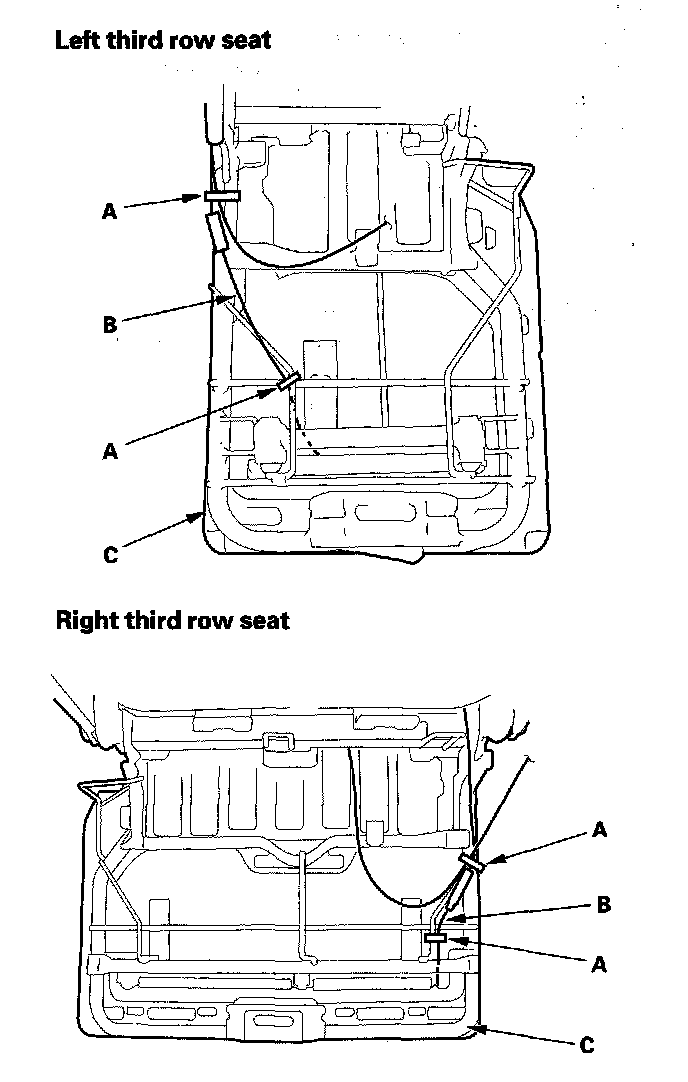

7. Release the wire ties (A) fastening the latch cable (B) on the seat cushion frame (C), then remove the cable.
8. Install the latch cable in the reverse order of removal, and note these items:
- Make sure the latch cables are connected securely.
- Make sure the third row seat latches and unlatches properly.
