Power Adjustable Pedals Replacement

Power Adjustable Pedals Replacement

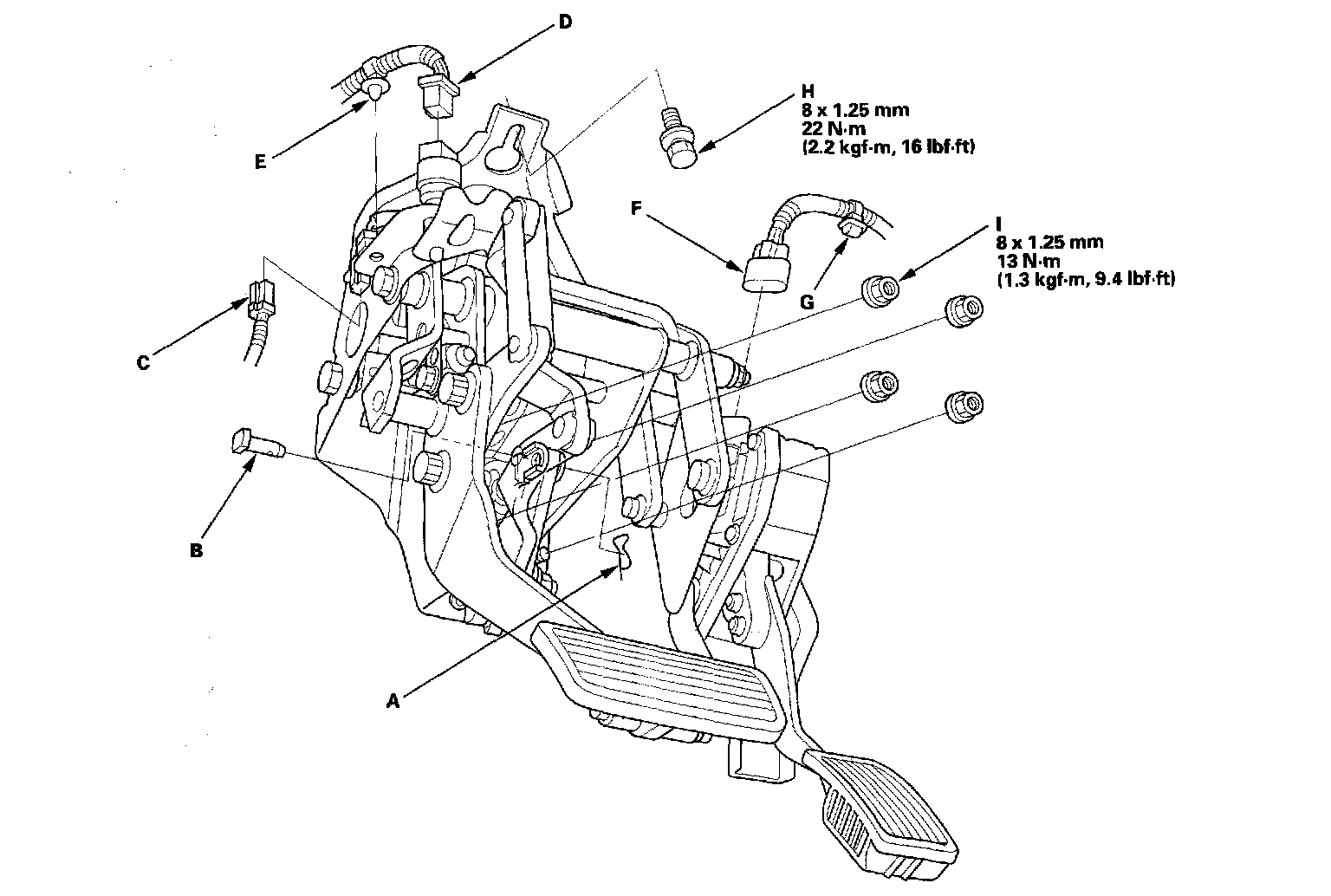

1. Remove the lock pin (A) and joint pin (B).





2. Disconnect adjust motor connector (C).
3. Disconnect the brake pedal position switch connector (D) and remove the clip (E).
4. Disconnect the accelerator connector (F) and the clip (G).
5. Remove the power adjustable pedals bracket mounting bolt (H) and nuts (I).
6. Install the adjustable pedals assembly in the reverse order of removal.
7. Do the brake pedal and brake pedal position switch adjustment.
