Navigation Connectors

63. GPS Antenna Connector (Navigation: EX-L, Touring):

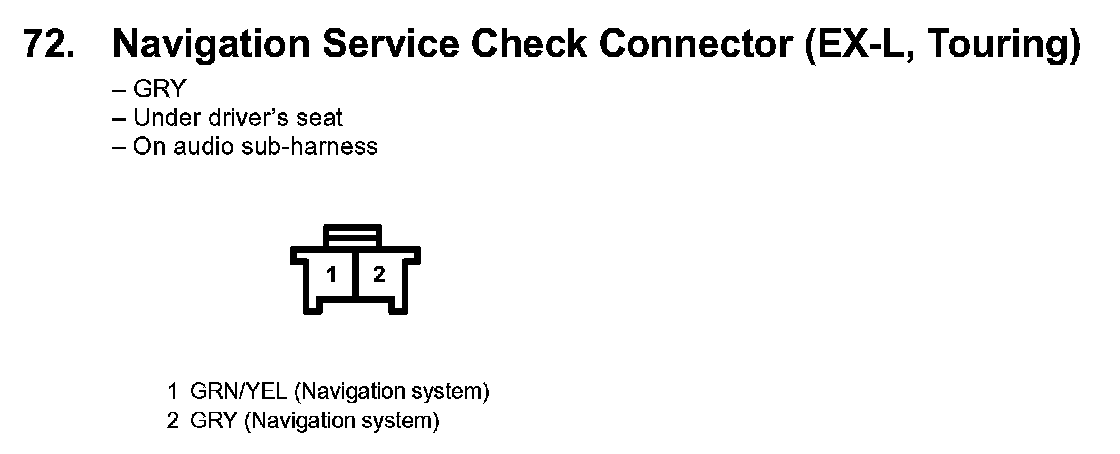

72. Navigation Service Check Connector (EX-L, Touring):

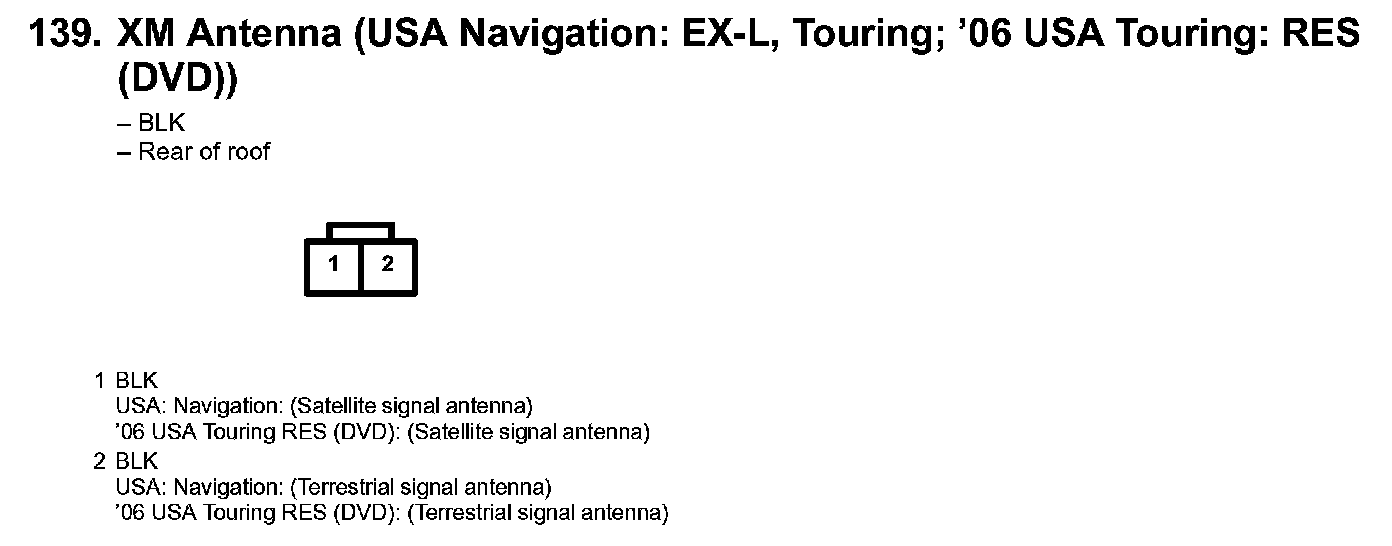

139. XM Antenna (USA: Navigation: EX-L, Touring; '06 USA Touring: RES (DVD)):

196. Voice Control Switch (Navigation: EX-L, Touring):

241. Rearview Camera (Navigation: EX-L, Touring):

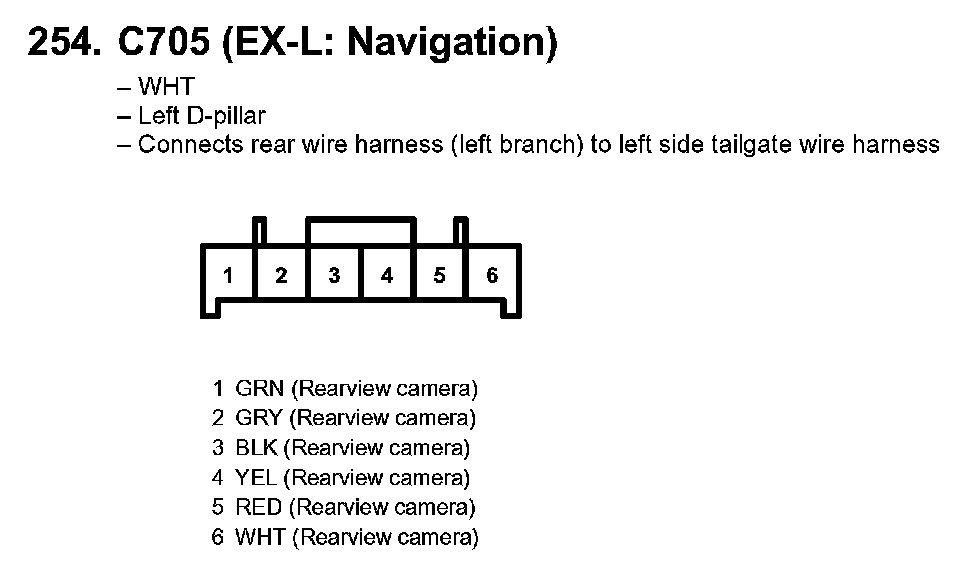

254. C705 (EX-L: Navigation):

256. C852 (EX-L: Navigation):

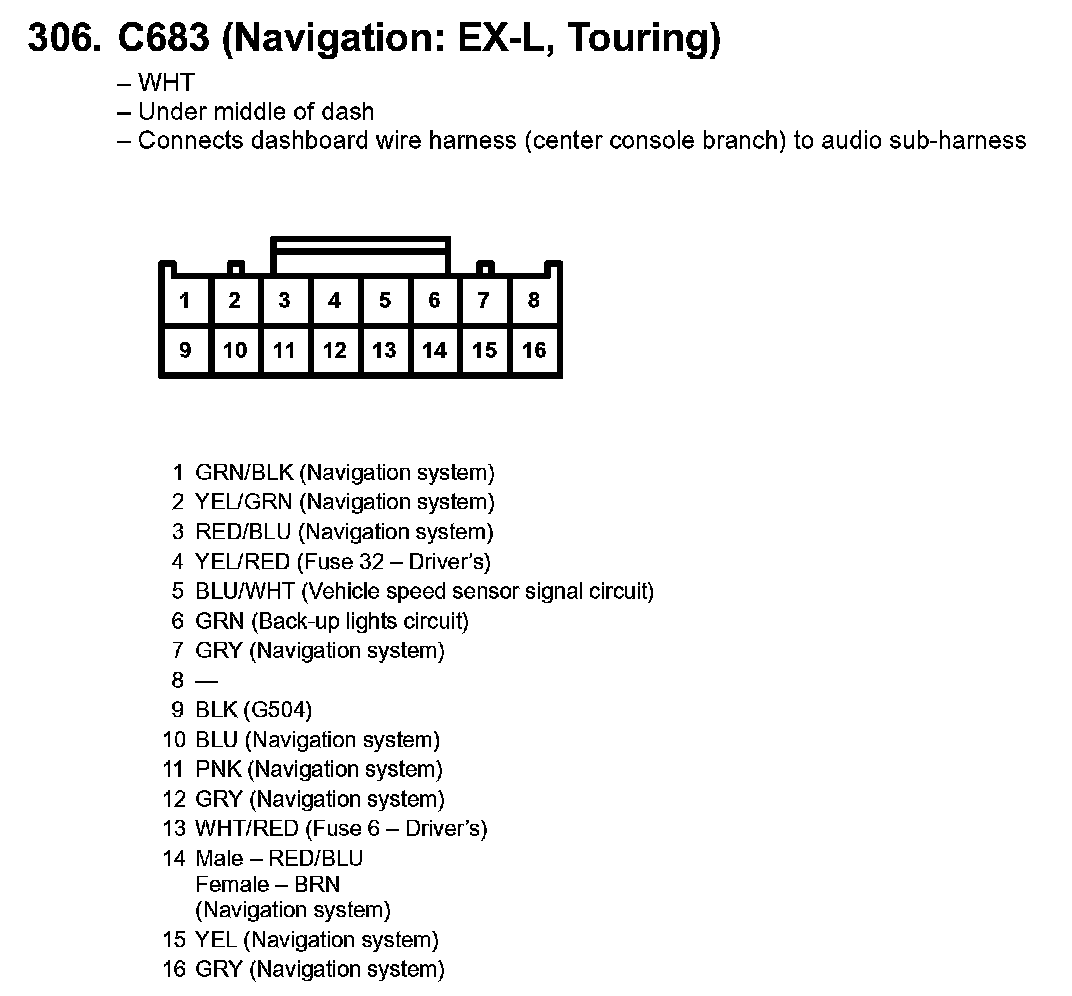

306. C683 (Navigation: EX-L, Touring):

345. CD Changer (Navigation: EX-L. Touring):

372. XM Receiver (USA: Navigation: EX-L, Touring; '06 USA Touring: RES (DVD))):
