Power Trunk / Liftgate Hazard Sensor

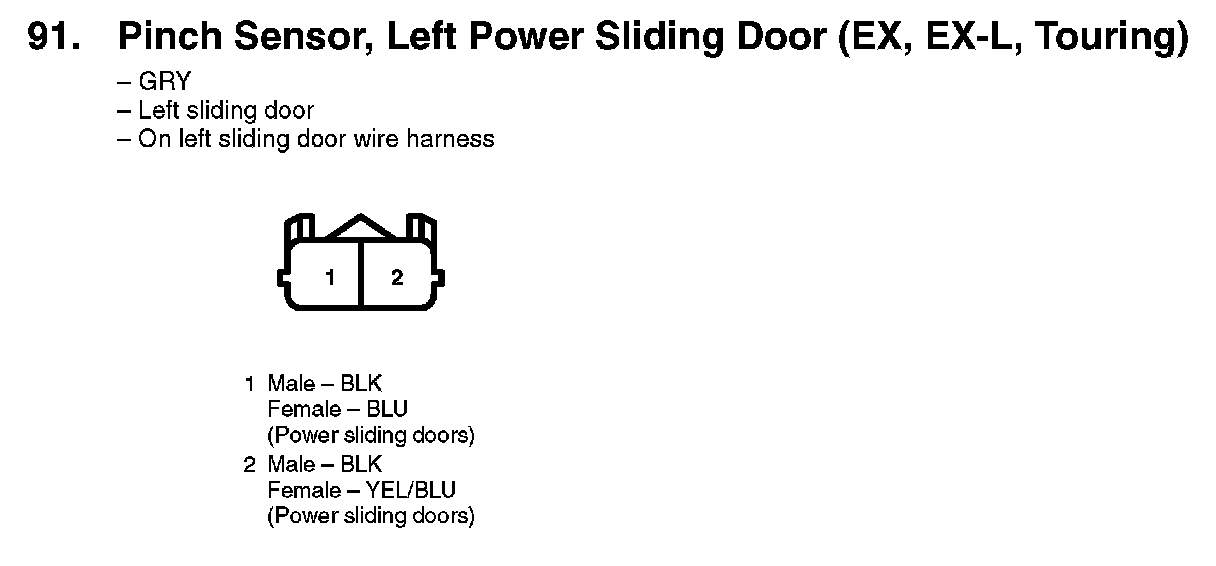

91. Pinch Sensor, Left Power Sliding Door (EX, EX-L, Touring):

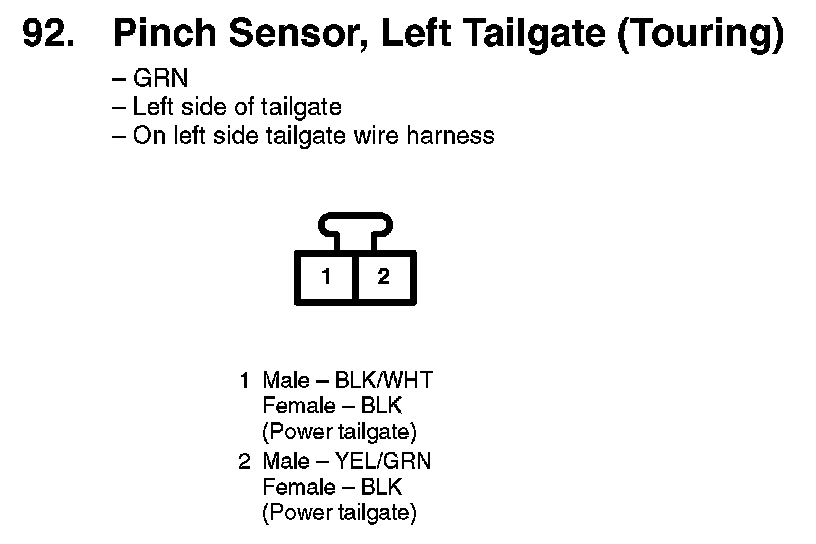

92. Pinch Sensor, Left Tailgate (Touring):

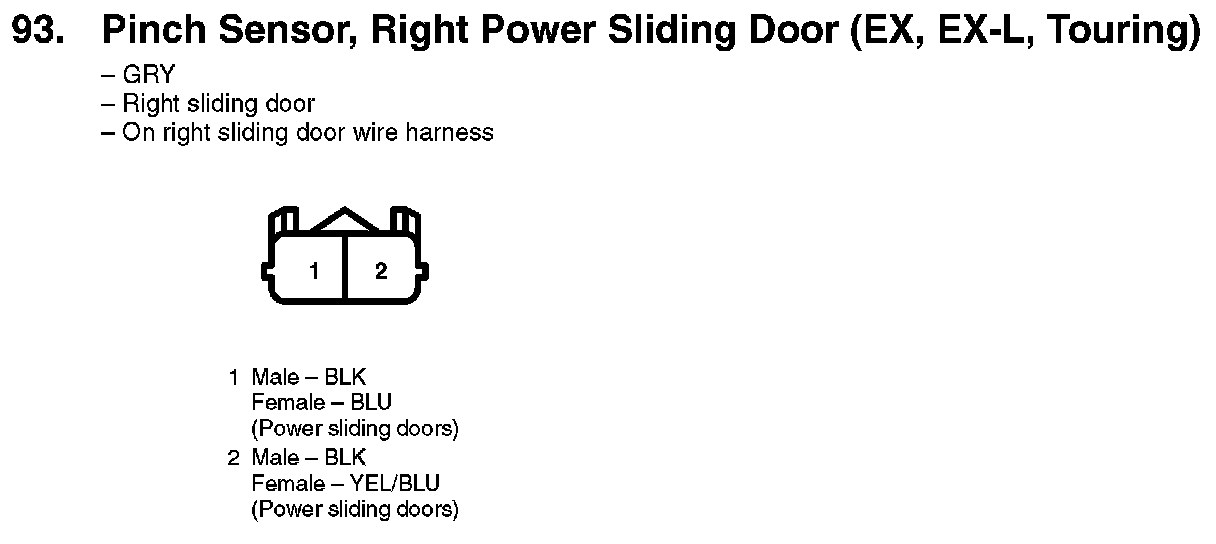

93. Pinch Sensor, Right Power Sliding Door (EX, EX-L, Touring):

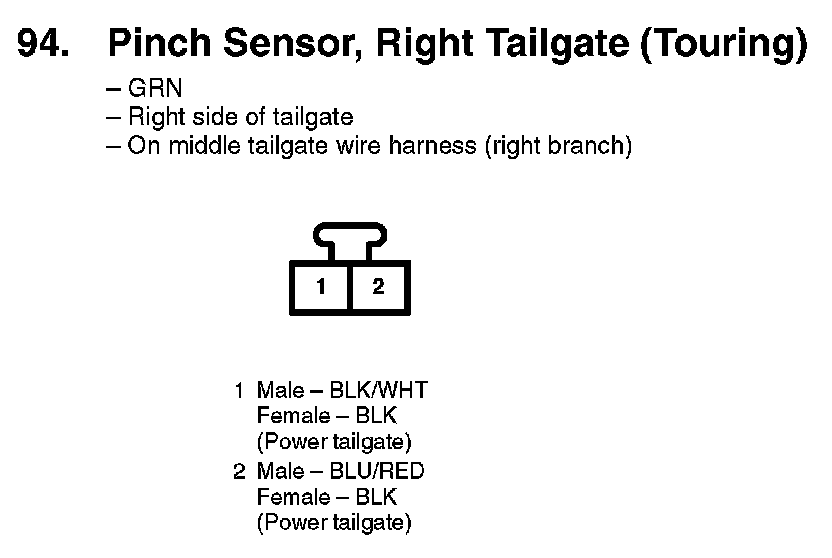

94. Pinch Sensor, Right Tailgate (Touring):
