Blower Motor Replacement
Blower Motor Replacement 1.
Remove the passenger's side under cover
2.

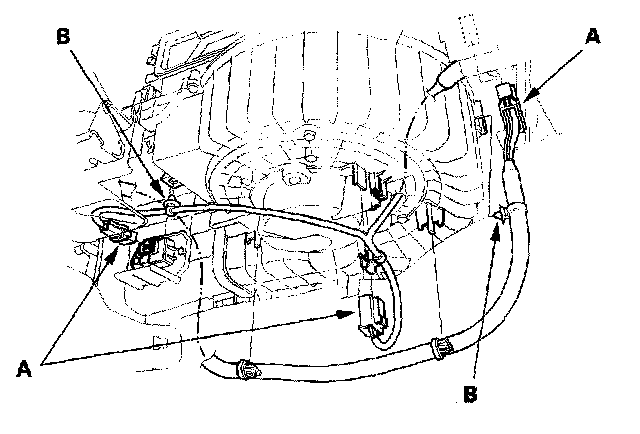

Disconnect the connectors (A) from the climate control unit (with climate control), the
blower motor, and the power transistor, then remove the wire harness clips (B).
3.

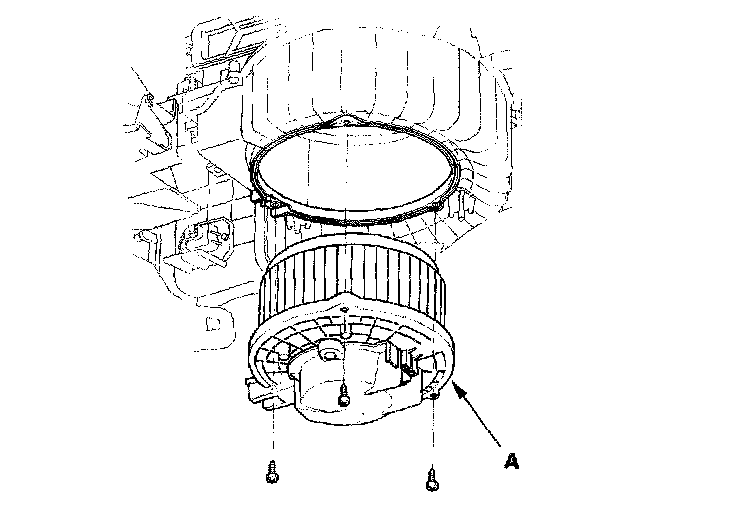

Remove the
blower motor (A).
4.
Install the motor in the reverse order of removal.
