Rear In-Car Temperature Sensor Replacement
Rear In-car Temperature Sensor Replacement 1.
Remove the right rear side trim panel.
2.

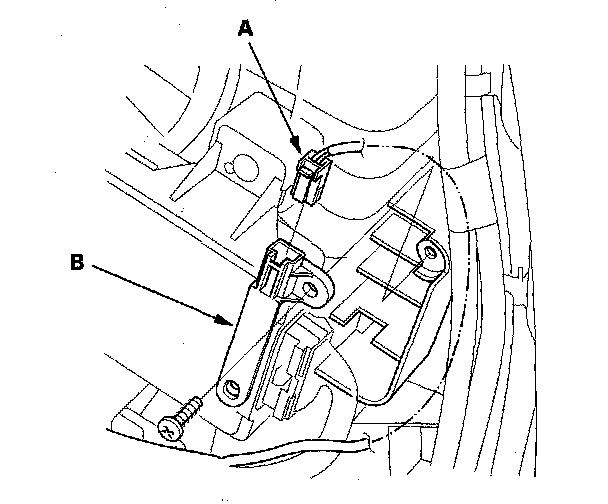

Disconnect the 2P connector (A) from the rear in-car temperature sensor (B), then remove the self-tapping screw and the rear in-car temperature sensor.
3.
Install the sensor in the reverse order of removal.
