Condenser HVAC: Service and Repair
A/C Condenser Replacement1. Make sure you have the anti-theft code for the radio and the navigation system, then write down the XM radio channel presets.
2. Recover the refrigerant with a recovery/recycling charging station.
3. Remove the front grille cover.

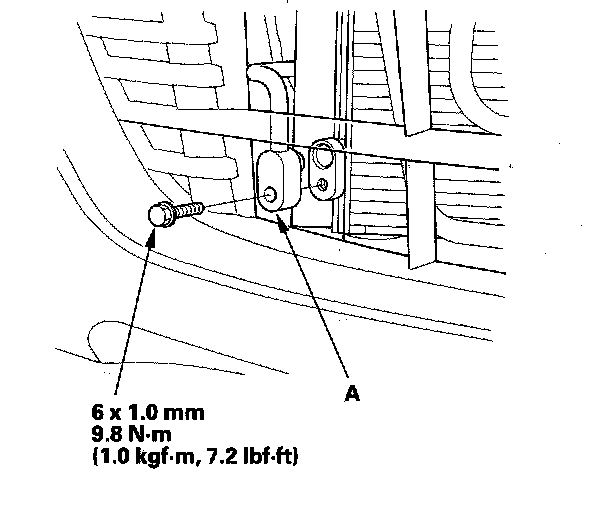

4. Remove the bolt, then disconnect the receiver line (A) from the A/C condenser.

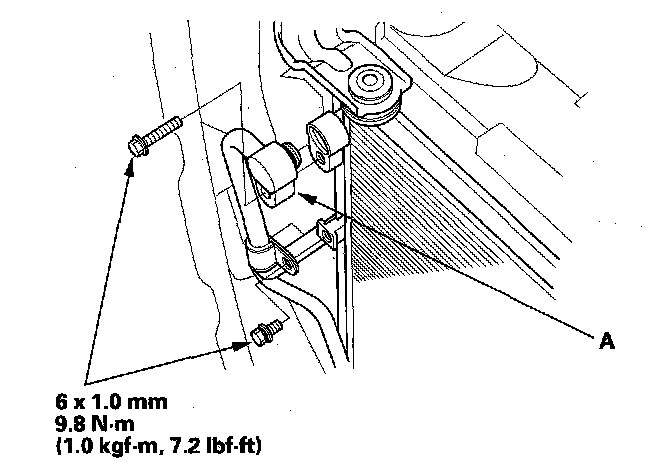

5. Remove the bolts, then disconnect the discharge line (A) from the A/C condenser.

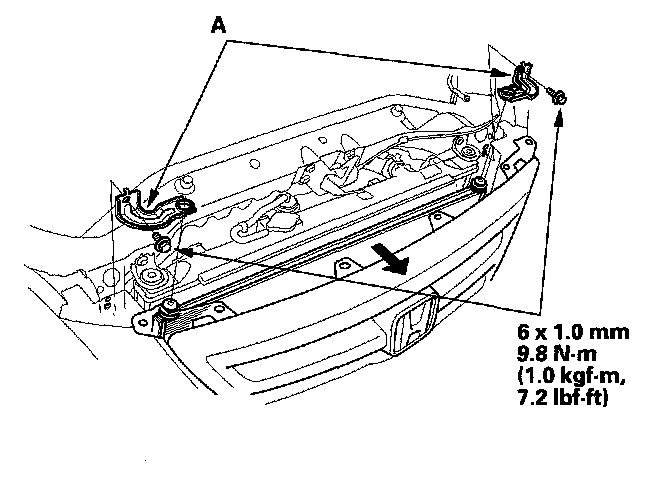

6. Remove the bolts and the A/C condenser upper mount brackets (A).

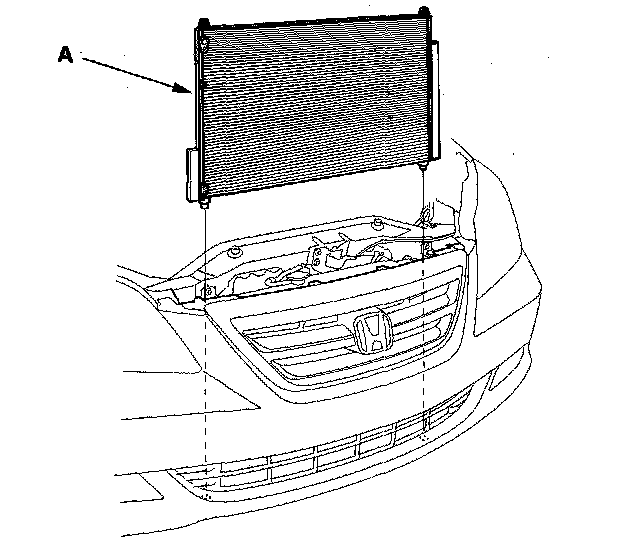

7. Remove the A/C condenser (A) by lifting it up. Be careful not to damage the radiator and A/C condenser fins when removing the A/C condenser.
8. Install the A/C condenser in the reverse order of removal, and note these items:
- If you're installing a new A/C condenser, add refrigerant oil (DENSO ND-OIL 8).
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
- Charge the system.
- Enter the anti-theft codes for the radio and navigation system, then enter the customer's XM radio channel presets.
